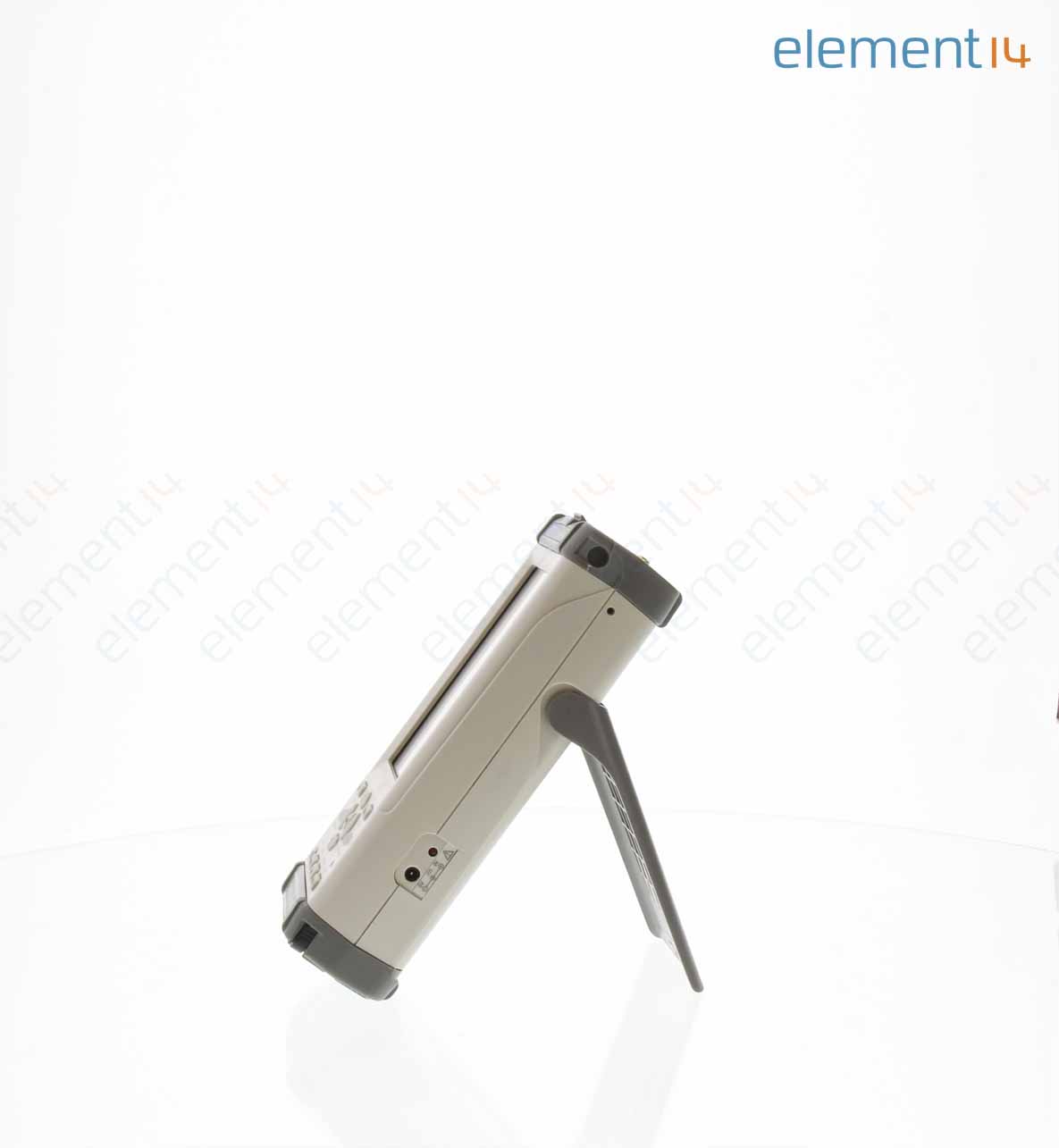

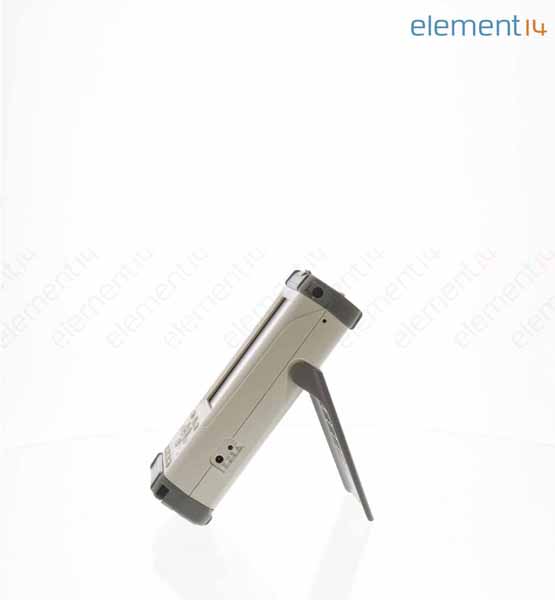

AIM-TTI INSTRUMENTS PSA-1303USC
Spectrum Analyser, Handheld, PSA Series 3, 1MHz to 1.3GHz, 192 mm, 92 mm, 49 mm
- Manufacturer:
- AIM-TTI INSTRUMENTS AIM-TTI INSTRUMENTS
- Manufacturer Part No:
- PSA-1303USC
- Order Code:
- 3889726
- Product Range
- PSA Series 3
- Technical Datasheet:
- PSA-1303USC Datasheet
- ECAD / MCAD
-
Product Range Selector (PSA Series 3)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Handheld
- :
- PSA Series 3
- :
- 1MHz to 1.3GHz
- :
- 192mm
- :
- 92mm
- :
- 49mm
- :
- 580g
- :
- -
- :
- -
Technical Documents (2)
Product Overview
PSA-1303USC is an extended version of PSA 1303 RF spectrum analyser includes the firmware upgrade (U01), the travel case, telescopic antenna and car charger. It is a lightweight and truly handheld instrument that incorporates an extensive feature set. A ruggedized casing with a removable sun screen/screen protector to enhance field use. The 109mm TFT with 3 row hierarchical menu system provides rapid access to all features. Additional Hard keys are provided for marker movement and short cuts to major functions. On time is almost instant with the first sweep available in under 2 seconds.
- 1MHz to 1300MHz frequency range
- Truly portable only 0.58kg
- Noise floor of -115dBm
- Resolution bandwidth 300Hz to 10MHz 1:3:10
- Zero span mode with AM and FM audio demodulation
- Trace modes of normal, peak hold and trace average
- Live, view and reference traces in contrasting colours
- Smart marker movement with selectable peak tracking
- Auto-find automatically sets sweep parameters for the highest signal found
- Unlimited data storage and battery operation of more than 6 hours
- Option U01: adds limit lines, data logging, sweep trigger, compensation tables, custom presets
Contents
PSA1303 spectrum analyser, Firmware upgrade (U01), Travel case PSA2-SC, Telescopic antenna WB-ANT, Vehicle charger PSA-VC, Universal voltage mains adaptor/charger, USB connection lead, Spare stylus, BNC converter for trigger input, Multi-language Short Guide, Full instruction manual & support software links for download.
