10-707515-002

The Tru-loc series Rugged Environment Connector featuring RADSOK® contacts. It is designed to perform in demanding environments, such as under valve covers on diesel engines and in high vibration sensor applications. It features a moulded thermoplastic main plug body with secondary latch and a fluoroelastomer main joint seal that is resistant to many fluids, including diesel fuel. It includes 2-way, 4-way and 6-way inline plugs and receptacles. It is design to mate to a device, sensor, fuel injector, splitter and pass through connector. Special backs-hells can be designed for the 6-way series and we can meet 150°C temperatures.

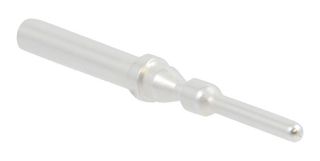

• 2, 4 or 6-pin connector with 1.5mm RADSOK® featured contacts
• Plug body with secondary latch
• Fluoroelastomer main joint seal and silicone rubber wire seals
• IP67 Protection
• Dielectric withstanding voltage is 1600VAC RMS
• 13A Current rating
• 100MΩ Insulation resistance
• <lt/>70N Mating force
• 60 to 80N Contact retention
• Durability is 20 mating cycles
• -40 to 125°C Operating temperature range

Applications

Sensing & Instrumentation, Automotive, Commercial, Industrial
