082-202-1006
RF / Coaxial Connector, N Coaxial, Straight Plug, Solder, 50 ohm, Belden 9913, LMR-400, Nickel
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.1,841.560 |
| 10+ | Rs.1,571.860 |
| 25+ | Rs.1,477.900 |
| 50+ | Rs.1,437.880 |
| 100+ | Rs.1,317.820 |
| 250+ | Rs.1,291.940 |
Product Information
Product Overview

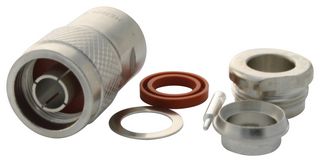

The 82-202-1006 is a RF Connector, N-type series, N-type straight Clamp Plug with silver-plated brass contact and crimp contact termination. Body made up of brass with nickel-plated finish and PTFE insulator. N-type connector is designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance through 11GHz. N-type connector feature threaded coupling mechanisms and is fully interchangeable with N-type connector made to the MIL-C-39012 specification. This connector is used in all systems where excellent RF and mechanical performance is critical. This RF connector is designed for RG-213, RG-214, RG-225, RG-302, RG-393 and RG-8 cable.
- Standard polarity
- Standard thread direction
- 5000MΩ Minimum insulation resistance
- 500 Mating cycles
- -65 to 165°C Temperature range
Applications
RF Communications, Communications & Networking, Sensing & Instrumentation, Wireless
Technical Specifications
No SVHC (15-Jan-2018)
Technical Docs (2)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
