Evaluation Kit, Precision Transimpedance Logarithmic Amplifier, Over 5 Decades of Dynamic Range

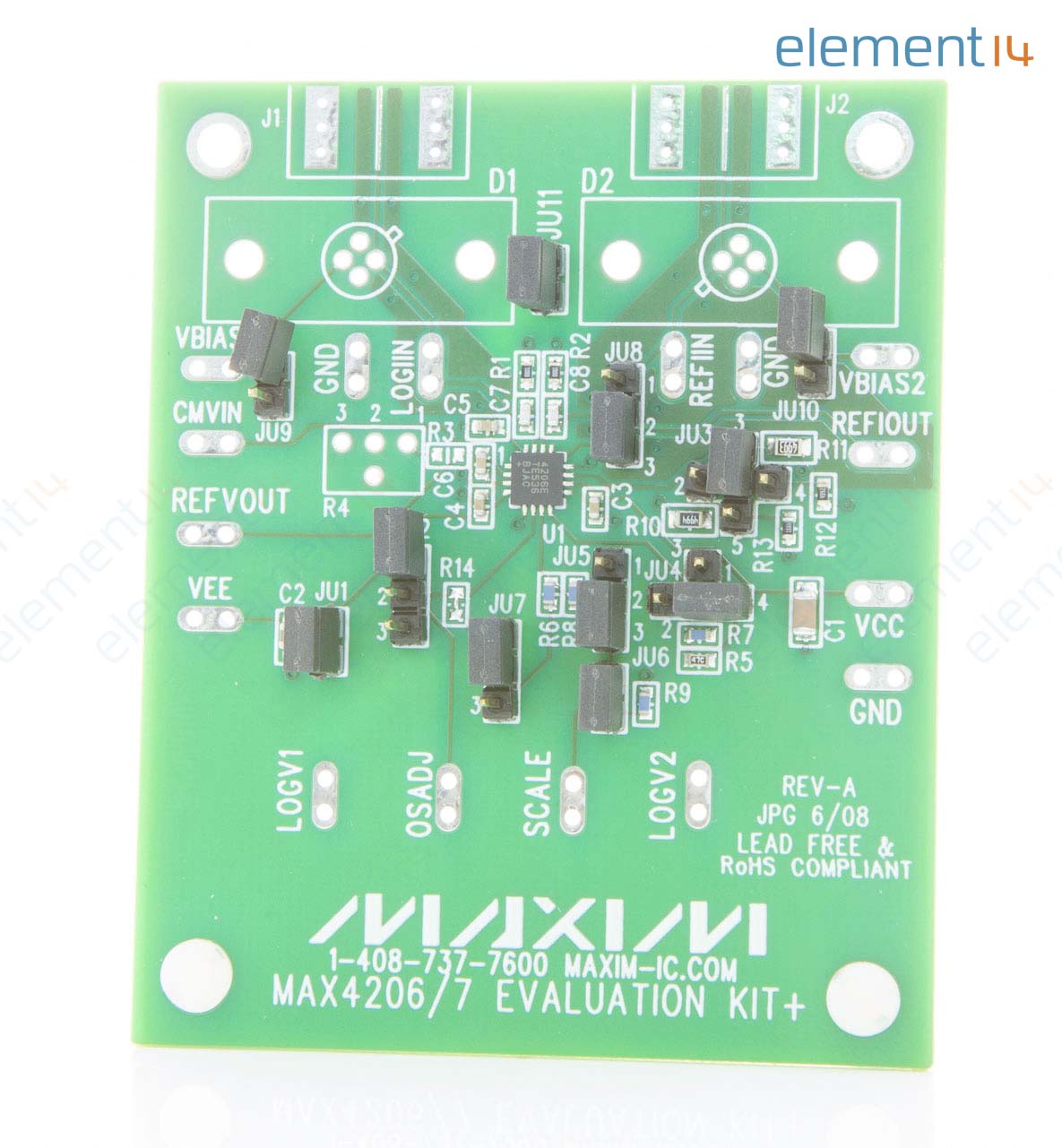

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
Technical Datasheet:
MAX4206EVKIT+   Datasheet
See all Technical Docs

Product Overview

The MAX4206EVKIT+ is an evaluation kit for MAX4206 precision transimpedance logarithmic amplifier with over 5 decades of dynamic range. The MAX4206 logarithmic amplifier computes the log ratio of an input current relative to a reference current (externally or internally generated) and provides a corresponding voltage output with a default 0.25V/decade scale factor. The EV kit operates from a single +2.7V to +11V supply or from dual ±2.7V to ±5.5V supplies with the ability to select one of four reference currents. The kit can be used to evaluate the MAX4207 by changing the IC and the input RC networks R1, R2, C7 and C8.
  • Selectable 10nA/100nA/1µA/10µA on-board reference current
  • Adjustable output scale factor
  • Surface mount construction
  • Fully assembled and tested
  • Operating temperature range from 0°C to +70°C


Signal Processing, Medical, Portable Devices

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×

Analog Devices



Logarithmic Amplifier

Evaluation Kit MAX4206


Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Available for back order

More stock available to supplier lead times which is approximately 24/7/23

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice

Notify me when back in stock


Pricing is unavailable. Please contact customer services.

Price for:
Multiple: 1 Minimum: 1
  • 1+
Quantity Price Your Price
1+ Rs.4,318.83
