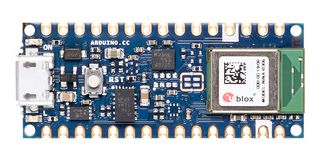

ABX00030

Arduino Nano 33 BLE (without headers) with Bluetooth Low Energy and embedded inertial sensor is a compact and reliable NANO board. It is built around the NINA B306 module based on Nordic nRF52840 and containing a powerful Cortex M4F. Its architecture, fully compatible with Arduino IDE online and offline, has a 9 axis Inertial Measurement Unit (IMU) and a reduced power consumption compared to other same size boards. This allows the design of wearable devices and movement sensing projects that need to communicate to other devices at a close range. Arduino NANO 33 BLE is also ideal for automation projects thanks to the multiprotocol BT 5.0 radio.

• Designed for short range BT interactions and power savvy projects
• 3.3V compatible board in the smallest available form factor: 45x18mm
• Embedded 9 axis inertial sensor makes this board ideal for wearable devices
• nRF52840 from Nordic Semiconductors, a 32bit ARM® Cortex™-M4 CPU running at 64MHz
• Bluetooth® pairing via NFC and ultra-low power consumption modes
• Comes with a 9 axis inertial measurement unit (IMU)
• Perfect choice for more advanced robotics experiments, exercise trackers, digital compasses
• PWM pins, UART, SPI, I2C
• Weight is 5g
