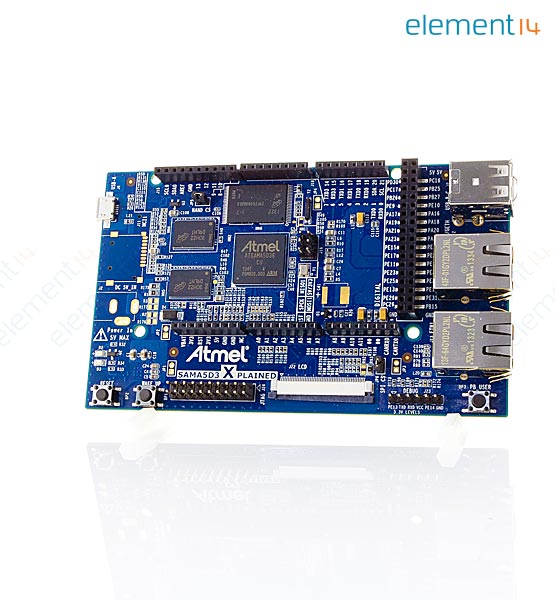

Development Board, Cortex-A5 MCU, 2GBit DDR2, Ethernet, USB, Arduino R3-Compatible Header


Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
Technical Datasheet:
ATSAMA5D3-XPLD   Datasheet
See all Technical Docs

Alternatives for ATSAMA5D3-XPLD

Product Information

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (6)

CAD Downloads


Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

The Atmel SAMA5D3 Xplained evaluation kit (ATSAMA5D3-XPLD) is a fast prototyping and low cost evaluation platform for microprocessor-based design. The board is based on Atmel's SAMA5D3 ARM Cortex®-A5 processor and comes with a rich set of ready to use connectivity and storage peripherals and expansion headers for easy customisation. A USB device connector can be used to power the board and also for programming and debugging it. It also comes with a free of charge Linux distribution including Linux Kernel 3.10 (LTS), Linux Mainline and Yocto 1.5.1 support. Bare metal developers benefit from a complete C software package including many examples to get started fast. The board is also a perfect development platform for headless Android. This is an open source dev kit offering full documentation including: source code, schematics, gerber files, application notes and full datasheet.
  • Powerful dev kit with Atmel's SAMA5D36 Cortex-A5 based MPU
  • 2GBit DDR2 RAM - Micron
  • 2GBit Flash - Micron
  • 1x Ethernet 10/100/1000 Connector
  • 1x Ethernet 10/100 Connector
  • 1x USB Device connector, 2 USB Host connectors
  • Easy customisable via a set of expansion connectors, including an Arduino R3 shield header
  • SD/MMCPlus 8-bit Card slot
  • 1x Micro SDCard 4-bit slot footprint
  • Software ecosystem from Bare Metal C up to a comprehensive Linux distribution for easy development


Automation & Process Control, Industrial, Embedded Design & Development, Motor Drive & Control, Robotics, Consumer Electronics


One SAMA5D3 Xplained board, One Micro-AB to typeA USB cable
