You can choose from our broad range of standard oscillators to keep track of time, provide a stable clock signal for digital integrated circuits, or stabilise frequencies for radio transmitters and receivers

Virtually every printed circuit board made in recent history has an oscillator of some form on it, and most integrated circuits contain oscillators too. Oscillators are essential components that produce a periodic electronic signal, typically a sine wave or square wave.

Oscillators convert DC signals to periodic AC signals which can be used to set frequency, or for audio applications, or used as a clock signal. All microcontrollers and microprocessors require an oscillator to set the clock signal in order to function. Some devices have them built-in, and some require an external oscillator - or both, having a low accuracy internal oscillator with the option for an external signal to be provided.

How do crystal oscillators work?

Crystal oscillators operate on the principle of inverse piezoelectric effect. When an alternating voltage is applied across the crystal surfaces, it causes the crystal to vibrate at its natural frequency. These vibrations are eventually converted into oscillations.

A crystal oscillator is an electronic oscillator circuit that uses a piezoelectric crystal as a frequency-selective element. The oscillator frequency is often used to keep track of time, as in quartz wristwatches, to provide a stable clock signal for digital integrated circuits, and to stabilize frequencies for radio transmitters and receivers.

Abracon’s ASE Series of SMD crystal oscillators features low height (1.2mm max), tri-state function, and low current consumption with 30mA max for 200MHz. With low RMS jitter (5ps max), it is available for tight stability options. It is suitable for RoHS reflow.

Applications

CCD clock for VTR camera
Equipment connected to PC or PC cards
PDA, wireless communication
Laptop, SSD (Solid State Drive)

Compare Selected Compare (0)

Sort by

Best Match

Best Match Price: Low to High Price: High to Low Stock: Low to High Stock: High to Low

Manufacturer Part No	Order Code	Description / Manufacturer	Price For	Price	Quantity	Frequency Nom	Frequency Stability + / -	Oscillator Case	Supply Voltage Nom	Product Range	Operating Temperature Min	Operating Temperature Max	Oscillator Output Compatibility
						Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending

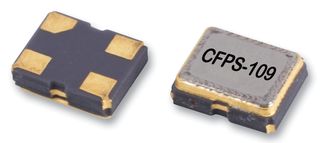

LFSPXO009686	1674695RL Data Sheet + RoHS	Oscillator, 32.768 kHz, 50 ppm, SMD, 2.5mm x 2mm, 3.3 V, CFPS-109 Series IQD FREQUENCY PRODUCTS You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Re-reel Packaging Options Suggested replacement for:1674695RL 1674695 in Cut Tape	100+ Rs.142.09 500+ Rs.125.81 1000+ Rs.116.04 2500+ Rs.111.66	Restricted Item Minimum order of 100 items Multiples of 1 only Please enter a valid quantity Add Min: 100 Mult: 1	32.768kHz	50ppm	SMD, 2.5mm x 2mm	3.3V	CFPS-109	-40°C	85°C	CMOS
LFSPXO009686	1674695 Data Sheet + RoHS	Oscillator, 32.768 kHz, 50 ppm, SMD, 2.5mm x 2mm, 3.3 V, CFPS-109 Series IQD FREQUENCY PRODUCTS You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:1674695 1674695RL in Re-reel	1+ Rs.177.90 10+ Rs.170.58 100+ Rs.142.09 500+ Rs.125.81 1000+ Rs.116.04 2500+ Rs.111.66 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	32.768kHz	50ppm	SMD, 2.5mm x 2mm	3.3V	CFPS-109	-40°C	85°C	CMOS
830208229409	4228871 New product Data Sheet + RoHS	Oscillator, 32.768 kHz, 100 ppm, CMOS, SMD, 2.6mm x 2.1mm, 3.3 V, CFPS-109 Series WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:4228871 4228871RL in Re-reel	5+ Rs.233.16 50+ Rs.185.95 250+ Rs.164.50 500+ Rs.157.34 1500+ Rs.154.48 3000+ Rs.145.90 More Pricing...	Restricted Item Minimum order of 5 items Multiples of 5 only Please enter a valid quantity Add Min: 5 Mult: 5	32.768kHz	100ppm	SMD, 2.6mm x 2.1mm	3.3V	CFPS-109 Series	-40°C	125°C	CMOS
830208229409	4228871RL New product Data Sheet + RoHS	Oscillator, 32.768 kHz, 100 ppm, CMOS, SMD, 2.6mm x 2.1mm, 3.3 V, CFPS-109 Series WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Re-reel Packaging Options Suggested replacement for:4228871RL 4228871 in Cut Tape	50+ Rs.185.95 250+ Rs.164.50 500+ Rs.157.34 1500+ Rs.154.48 3000+ Rs.145.90	Restricted Item Minimum order of 100 items Multiples of 5 only Please enter a valid quantity Add Min: 100 Mult: 5	-	-	SMD, 2.6mm x 2.1mm	-	-	-	-	-
