01414-5
Interface, CAN, PCIe, 1 Mbps, 4 Channel, 700 to 1300 mW, -40 to 85 ° C
Image is for illustrative purposes only. Please refer to product description.
ManufacturerKVASER
Manufacturer Part No01414-5
Order Code4712418
Product RangeKvaser PCIeSeries
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 12 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.95,656.190 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.95,656.19
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerKVASER
Manufacturer Part No01414-5
Order Code4712418
Product RangeKvaser PCIeSeries
Technical Datasheet
Module InterfaceCAN, PCIe
Data Rate1Mbps
Product RangeKvaser PCIeSeries
SVHCNo SVHC (21-Jan-2025)
Product Overview

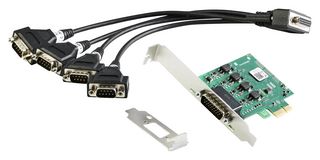

01414-5 is a Kvaser PCIEcan 4xCAN v2, a multi channel real time CAN interface board with four CAN/CAN FD channels. This is a small, yet advanced, CAN multichannel real time CAN interface that handles transmission and reception of standard and extended CAN messages on the bus with a high timestamp precision. It is compatible with applications that use Kvaser‘s CANlib.
- Supports CAN FD, up to 8Mbit/s (with correct physical layer implementation)
- Quick and easy plug-and-play installation
- Supports both 11-bit (CAN 2.0A) and 29bit (CAN 2.0B active) identifiers
- Compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib
- High-speed CAN connection (compliant with ISO 11898-2), up to 1Mbit /s
- Simultaneous operation of multiple devices
- Low profile board, includes low and high profile brackets and includes 4 channel breakout cable
- Compatible with J1939, CANopen, NMEA 2000® and DeviceNet
- Features error frame detection, error frame generation and galvanic isolation
- Operating systems: Linux, Windows (7, 8, 10 and 11) and temperature range from -40 to +85°C
Technical Specifications
Module Interface
CAN, PCIe
Product Range
Kvaser PCIeSeries
Data Rate
1Mbps
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Sweden
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Sweden
Country in which last significant manufacturing process was carried out
Tariff No:85381090
US ECCN:5A991.b.4.a
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000001
