ANALOG DEVICES MAX30101ACCEVKIT#
Evaluation Module, MAX30101 High-Sensitivity Pulse Oximeter, Heart-Rate Sensor, Wearable Health
- Manufacturer:
- ANALOG DEVICES ANALOG DEVICES
- Manufacturer Part No:
- MAX30101ACCEVKIT#
- Order Code:
- 2580784
-
- Technical Datasheet:
- MAX30101ACCEVKIT# Datasheet
- ECAD / MCAD
-
Alternatives for MAX30101ACCEVKIT#
Product Overview

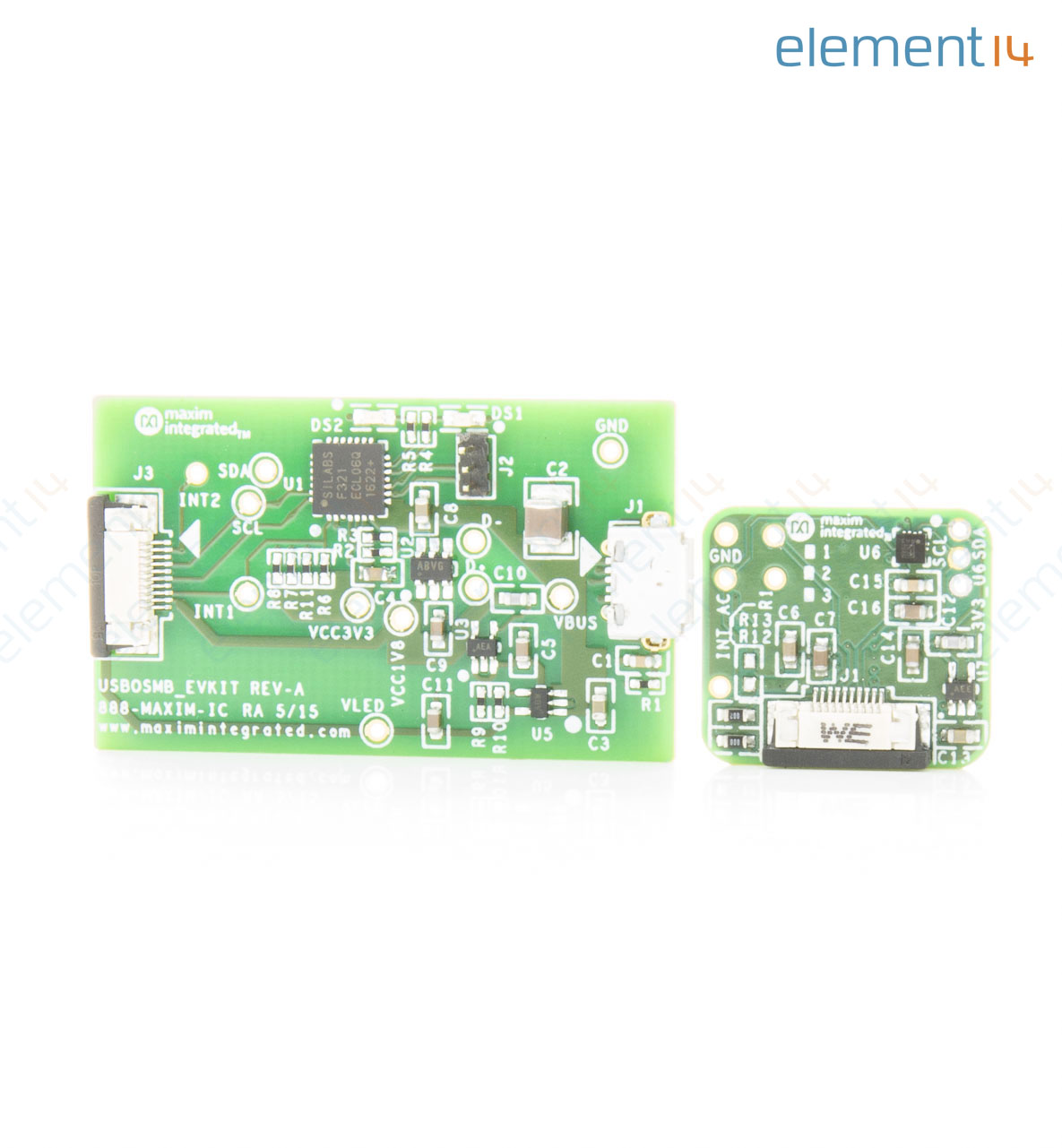

The MAX30101ACCEVKIT# is an evaluation kit (EV kit) for MAX30101. It provides a proven design to evaluate the MAX30101 integrated pulse-oximetry and heart-rate monitor integrated circuit (IC). The EV kit consists of two boards. USBOSMB is the mother board and MAX30101DBEVKIT is the daughter board that includes the MAX30101 and an accelerometer. The EV kit is powered using the USB supply to generate +1.8V for the sensor and +4.5V for the internal LEDs of the MAX30101 and +3.3V for the accelerometer. It comes with a MAX30101EFD+ installed in a 14-pin OESIP package. Typical applications include fitness assistant devices and wearable devices.
- Real-time monitoring
- Flexible PCB design
- Proven PCB layout
- Fully assembled and tested
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Sensor
- :
- Analog Devices
- :
- MAX30101
- :
- Pulse Oximeter & Heart Rate Monitor
- :
- USBOSMB Mother Board, Daughter Board MAX30101DBEVKIT, FFC Cable, micro-USB Cable
- :
- -
Technical Documents (3)
No Longer Manufactured
Rs.6,365.14
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 1 Minimum: 1
- 1+
| Quantity | Price | Your Price |
|---|---|---|
| 1+ | Rs.6,365.14 | |
