783818-01

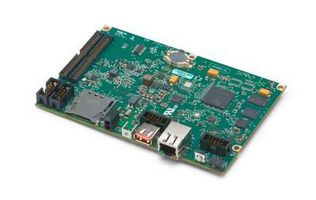

Controller, CompactRIO, sbRIO-9637, Xilinx Zynq-7000, 667 MHz, 2 Cores, 512 MB RAM, Development Kit
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 5 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.333,900.000 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.333,900.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNI / EMERSON
Manufacturer Part No783818-01
Order Code3620547
Technical Datasheet
No. of Processor Cores2 Core
Compatible WithNI CompactRIO Chassis
Product Overview
783818-01 is a sbRIO-9637 CompactRIO single board controller. It is an embedded controller that integrates a real-time processor running NI Linux Real-Time, a user-reconfigurable FPGA, and I/O on a single printed circuit board (PCB). The sbRIO-9637 is designed to be easily embedded in high-volume OEM applications that require flexibility, reliability, and high performance. This controller features Gigabit Ethernet, CAN, USB, serial, and SDHC ports and an operating temperature range that can handle the most demanding environments. The sbRIO-9637 has sixteen 16-bit analog inputs, four 16-bit analog outputs, and 28 3.3 V digital lines.
- Zynq-7000 (Z-7020) FPGA
- 667MHz dual-core ARM cortex A9 processor core
- 512MB DRAM, 512MB storage
- Controller runs fully on the NI Linux 32-bit real-time operating system
- 5ppm real-time clock, accuracy
- 100,000 cycles flash reboot endurance
Technical Specifications
No. of Processor Cores
2 Core
Compatible With
NI CompactRIO Chassis
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Hungary
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Hungary
Country in which last significant manufacturing process was carried out
Tariff No:85423100
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.91
