3752

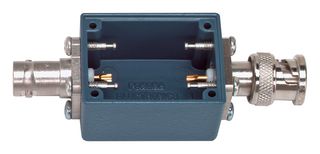

Metal Enclosure, Small, Diecast Aluminium, 22.35 mm, 28.7 mm, 38.1 mm
Image is for illustrative purposes only. Please refer to product description.
24 In Stock
Need more?
24 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.6,918.390 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.6,918.39
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPOMONA
Manufacturer Part No3752
Order Code2917796
Technical Datasheet
Enclosure TypeSmall
Enclosure MaterialDiecast Aluminium
External Height - Metric22.35mm
External Width - Metric28.7mm
External Depth - Metric38.1mm
IP Rating-
Body ColourBlue
NEMA Rating-
External Height - Imperial0.88"
External Width - Imperial1.13"
External Depth - Imperial1.5"
Product Range-
SVHCNo SVHC (15-Jun-2015)
ConfigurableNo
Product Overview
The 3752 is a Shielded Multipurpose Box features BNC female-to-BNC male connection, made of die-cast aluminum alloy A380 or A384 housing. The shielded die-cast aluminum enclosure can fulfill requirements for EMI/RFI applications. Available with blue baked enamel finish as per Federal standard 595 #25109 over primer wash as per DOD-P-15328. Box includes aluminum cover with clear anodized finish as per MIL-A-8625 and cover screws. Select box features component mounting capabilities. All rated 500VRMS, +150°C.
- Inner conductor/shield 500VRMS maximum operating voltage
- -55 to 150°C Operating temperature range
- 50Ω Nominal impedance
Applications
Industrial
Technical Specifications
Enclosure Type
Small
External Height - Metric
22.35mm
External Depth - Metric
38.1mm
Body Colour
Blue
External Height - Imperial
0.88"
External Depth - Imperial
1.5"
SVHC
No SVHC (15-Jun-2015)
Enclosure Material
Diecast Aluminium
External Width - Metric
28.7mm
IP Rating
-
NEMA Rating
-
External Width - Imperial
1.13"
Product Range
-
Configurable
No
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85389000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (15-Jun-2015)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.06
