ACS120-7ST

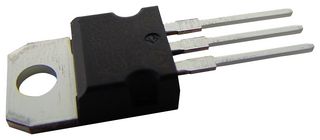

Triac, Switch, 700 V, 2 A, TO-220AB, 1 V, 20 A, 45 mA
Image is for illustrative purposes only. Please refer to product description.
478 In Stock
Need more?
478 Delivery in 4-6 Business Days(UK stock)
Available until stock is exhausted
| Quantity | Price |
|---|---|
| 1+ | Rs.131.610 |
| 10+ | Rs.78.460 |
| 100+ | Rs.71.150 |
| 500+ | Rs.67.060 |
| 1000+ | Rs.62.970 |
| 5000+ | Rs.58.880 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.131.61
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoACS120-7ST
Order Code1295341
Technical Datasheet
Peak Repetitive Off State Voltage700V
On State RMS Current2A
Triac Case StyleTO-220AB
Gate Trigger Voltage Max1V
Peak Non Repetitive Surge Current20A
Holding Current Max45mA
No. of Pins-
Operating Temperature Max125°C
Peak On State Voltage1.3V
Thyristor MountingThrough Hole
Product Range-
MSL-
SVHCNo SVHC (17-Dec-2015)
Product Overview
The ACS120-7ST is an overvoltage protected AC Switch belongs to the AC line switch family. This high performance switch can control a load of up to 2A. The switch embeds a high voltage clamping structure to absorb the inductive turn-OFF energy and a gate level shifter driver to separate the digital controller from the main switch. It is triggered with a negative gate current flowing out of the gate pin.
- Needs no more external protection snubber or varistor
- Enables equipment to meet IEC 61000-4-5
- Reduces component count by up to 80%
- Interfaces directly with the microcontroller
- Eliminates any gate kick back on the microcontroller
- Allows straightforward connection of several AC switches on same cooling pad
- ±700V Vdrm/Vrrm Blocking voltage
- 1100V VCL Avalanche controlled
- 2A IT(RMS) Conducting current
- <lt/>10mA Gate triggering current (IGT)
- High noise immunity - static dV/dt <gt/>500V/μs
Applications
Automation & Process Control, HVAC, Industrial, Motor Drive & Control, Power Management
