BOOST-DAC8568

Name: Evaluation Board, DAC8568 16-Bit DAC BoosterPack, 8 Channel, Low Power, Voltage Output
Brand: TEXAS INSTRUMENTS
SKU: 3126162
Availability: OutOfStock

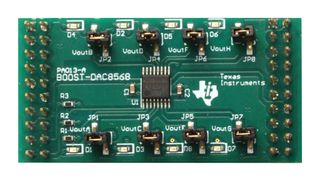

Evaluation Board, DAC8568 16-Bit DAC BoosterPack, 8 Channel, Low Power, Voltage Output

Image is for illustrative purposes only. Please refer to product description.

ManufacturerTEXAS INSTRUMENTS

Manufacturer Part NoBOOST-DAC8568

Order Code3126162

Available to Order

Manufacturer Standard Lead Time: 55 week(s)

Notify me when back in stock

Quantity	Price
1+	Rs.2,313.330

Price for:Each

Minimum: 1

Multiple: 1

Rs.2,313.33

Enter Your Part No/Line Note

Line Note

Added to your Order Confirmation, Invoice, and Dispatch note for this order only.

Your Part No

This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

Product Information

ManufacturerTEXAS INSTRUMENTS

Manufacturer Part NoBOOST-DAC8568

Order Code3126162

Silicon ManufacturerTexas Instruments

Core Architecture-

Core Sub-Architecture-

Silicon Core NumberDAC8568

Silicon Family Name-

For Use WithTexas MSP430F5529 LaunchPads

Kit ContentsEval Board DAC8568

Product Range-

SVHCNo SVHC (27-Jun-2018)

Product Overview

The BOOST-DAC8568 from Texas Instruments is a DAC8568 low power, voltage output, 8-channel, 16bit digital to analogue (DAC) BoosterPack. It is an easy to use platform that connects with the MSP430F5529 LaunchPad. The DAC8568 device is a low power, voltage output, 8-channel, 16bit digital to analogue converter (DAC). This devices includes a 2.5V, 2ppm/°C internal reference (disabled by default), giving a full scale output voltage range of 2.5V. The internal reference has an initial accuracy of 0.004% and can source up to 20mA. The DAC8568 BoosterPack is compatible with the TI LaunchPad ecosystem and it can also be used with other host processors via the SPI interface pins on the top of the board.

On-chip output buffer amplifier with rail to rail operation
Low power serial interface with schmitt triggered inputs up to 50MHz
Ultra low power operation
Header connection for DAC (A-H) outputs
Optional analogue output LED indicator

Applications

Signal Processing

Technical Specifications

Silicon Manufacturer

Texas Instruments

Core Sub-Architecture

Silicon Family Name

Kit Contents

Eval Board DAC8568

SVHC

No SVHC (27-Jun-2018)

Core Architecture

Silicon Core Number

DAC8568

For Use With

Texas MSP430F5529 LaunchPads

Product Range

Legislation and Environmental

Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out

Tariff No:84733020

US ECCN:EAR99

EU ECCN:NLR

RoHS Compliant:Not applicable

RoHS Phthalates Compliant:Not applicable

SVHC:No SVHC (27-Jun-2018)
