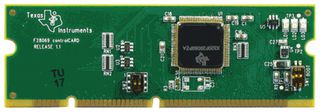

TMDSCNCD28069

The TMDSCNCD28069 is a C2000 controlCARDs for OEMs to use for initial software development and short run builds for system prototypes, test stands and many other projects that require easy access to high-performance controllers. The controlCARDs are complete board-level modules that utilize an industry-standard DIMM form factor to provide a low-profile single-board controller solution. The controlCARDs use the 100-pin connector footprint to provide the analogue and digital I/Os on-board controller and are completely interchangeable. The host system needs to provide only a single 5V power rail to the controlCARD for it to be fully functional.

• 9cm x 2.5cm Small form factor
• Standard 100-pin DIMM interface
• F28x analogue I/O, digital I/O and JTAG signals at DIMM interface
• Single 5V power rail for full operation

Applications

Test & Measurement, Industrial

Notes

JTAG emulator required for debug.
