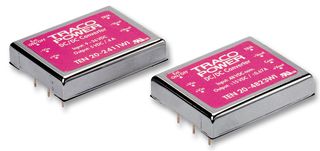

TEN 20-2412WI
Isolated Through Hole DC/DC Converter, ITE, DIP, 4:1, 20 W, 1 Output, 12 V
Need more?
| Quantity | Price |
|---|---|
| 1+ | Rs.7,724.870 |
| 10+ | Rs.6,989.060 |
| 25+ | Rs.6,382.190 |
| 50+ | Rs.6,062.720 |
| 100+ | Rs.6,003.270 |
Product Information
Product Overview
The TEN 20-2412WI is a high performance 20W DC/DC Converter Module features ultra wide 4:1 input voltage ranges 9 to 36VDC and 12VDC output with industry-standard footprint. A very high efficiency allows an operating temperature range of -40 to 85°C. A built-in EMI input filter complies with EN 55022, class-A. The standard features include 12VDC output voltage, remote ON/OFF, output voltage trimming, overvoltage protection and short-circuit protection. The applications for this converter are everywhere where isolated, tightly regulated voltages are required.
- Adjustable output
- Shielded metal case with insulated base plate
- 1500VDC I/O isolation
- 81% Typical efficiency
- 24VDC Nominal input voltage
Applications
Communications & Networking, Consumer Electronics
Notes
NRND - Not Recommended for New Designs
Technical Specifications
ITE
4:1
1 Output
1.67A
-
1.5kV
Fixed, Adjustable
10.2mm
9V
TEN 20WI Series
DIP
20W
12V
-
-
24V
40.6mm
50.8mm
36V
No SVHC (14-Jun-2023)
