Product Information
Manufacturer3M
Manufacturer Part No92 12MM
Order Code3309691
Product Range92
Also Known AsFE510055075
Technical Datasheet
Adhesive TypeAcrylic Adhesive
Tape Backing MaterialPolyimide Film
Tape ColourAmber
Total Tape Thickness3 mil (0.075 mm)
Roll Length - Imperial108.3ft
Roll Length - Metric33m
Tape Width - Imperial0.47"
Tape Width - Metric12mm
Product Range92
Product Overview

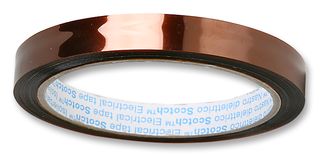

The 92 TAPE 12MM X 33M from 3M is a polyimide film electrical tape. This tape is a silicone pressure sensitive adhesive and used for high temperature electrical insulation applications such as wrapping coils, transformers, capacitors, wire harnesses, anchoring leads and printed circuit board assembly as wave solder masking tape.
- Tape colour is amber
- Tape width is 12mm
- Tape length is 33m
- Printable tape
- Shelf life of 5 years
- UL510, UL E17385 tested
Applications
Industrial, Safety
Technical Specifications
Adhesive Type
Acrylic Adhesive
Tape Colour
Amber
Roll Length - Imperial
108.3ft
Tape Width - Imperial
0.47"
Product Range
92
Tape Backing Material
Polyimide Film
Total Tape Thickness
3 mil (0.075 mm)
Roll Length - Metric
33m
Tape Width - Metric
12mm
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:France
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:France
Country in which last significant manufacturing process was carried out
Tariff No:39199090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.04
