                      10034908-001LF.

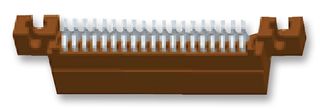

                      CONNECTOR, CARD EDGE, 2X19

                      AMPHENOL COMMUNICATIONS SOLUTIONS 10034908-001LF.
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerAMPHENOL COMMUNICATIONS SOLUTIONS
                      Manufacturer Part No10034908-001LF.
                      Order Code1568683
                      Product RangePower Edge Card 10034908
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      No Longer Stocked

                      Product Information

                      ManufacturerAMPHENOL COMMUNICATIONS SOLUTIONS
                      Manufacturer Part No10034908-001LF.
                      Order Code1568683
                      Product RangePower Edge Card 10034908
                      Technical Datasheet

                      Data Sheet

                      Card Edge Connector TypeDual Side
                      Card Thickness1.57mm
                      No. of Contacts38 Contacts
                      Connector MountingStraddle Mount
                      Connector Body OrientationStraight
                      Contact Termination TypeSolder
                      Contact MaterialCopper Alloy
                      Contact Plating - Mating Side30µ" Gold Plated Contacts
                      Connector Body MaterialThermoplastic Body
                      Product RangePower Edge Card 10034908
                      SVHCNo SVHC (12-Jan-2017)

                      Product Overview

                      The Power Card Edge series Power Card Edge Connector used for DC power output from embedded AC/DC power supplies or for power distribution between boards within an enclosure. The narrow connector body helps maximize airflow for increased cooling and is well-suited for use in 1U rack-mount servers or on power distribution boards inside 1U redundant power supply assemblies. Adjacent power contacts are positioned on 2.54mm pitch along the card edge. Power contacts are manufactured using a high-conductivity copper alloy. Each power contact is rated for up to 7A current measured at 30°C temperature rise in still air. Signal contacts are positioned on 1.27mm pitch. The connector range includes options for right-angle, vertical or straddle-mount solder termination with a full complement of power contacts. Right-angle options also include versions that combine power and power control signal contacts or power contacts and an integrated AC pass-through port in a single connector.

                      • One-piece card edge design provides power delivery with capacity for up to 7A per power contact
                      • An arrow connector body enables use in 1U servers and power supplies
                      • Low-profile design helps maximize airflow for system cooling
                      • Integrated connector design simplifies board assembly
                      • Right-angle product range includes versions with moulded posts or metal fork-locks for retention
                      • Straddle-mount connectors feature mounting ears for secure PCB attachment
                      • An optional AC cable port enables a cable pass-through solution

                      Applications

                      Computers & Computer Peripherals, Communications & Networking

                      Technical Specifications

                      Card Edge Connector Type

                      Dual Side

                      No. of Contacts

                      38 Contacts

                      Connector Body Orientation

                      Straight

                      Contact Material

                      Copper Alloy

                      Connector Body Material

                      Thermoplastic Body

                      SVHC

                      No SVHC (12-Jan-2017)

                      Card Thickness

                      1.57mm

                      Connector Mounting

                      Straddle Mount

                      Contact Termination Type

                      Solder

                      Contact Plating - Mating Side

                      30µ" Gold Plated Contacts

                      Product Range

                      Power Edge Card 10034908

                      Technical Docs (6)

                      Manufacturer Catalogue EN

                      Enhanced Product Overview EN

                      CAD Multiple Formats EN

                      Application Note EN

                      3D Product Image EN

                      Technical Data Sheet EN

                      Legislation and Environmental

                      Country of Origin:
                      Country in which last significant manufacturing process was carried outCountry of Origin:
                      China
                      Country in which last significant manufacturing process was carried out
                      Tariff No:85369090
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:To be advised
                      SVHC:No SVHC (12-Jan-2017)
                      Download Product Compliance Certificate
