DILB28P-223TLF

IC & Component Socket, 28 Contacts, DIP Socket, 2.54 mm, 15.24 mm, Copper Alloy

DILB28P-223TLF - IC & Component Socket, 28 Contacts, DIP Socket, 2.54 mm, 15.24 mm, Copper Alloy

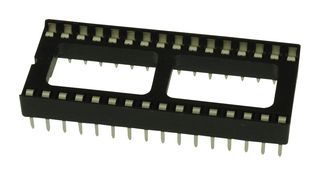

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
DILB28P-223TLF
Order Code:
2678541
Technical Datasheet:
DILB28P-223TLF   Datasheet
See all Technical Docs

Product Overview

The DILB28P-223TLF is a 28-position 2-row black open frame stamped and formed DIP Socket with standard insulator. It has tin plated copper alloy contacts and UL94V-0 polyester insulator. Integrated circuits are usually called ICs or chips. They are complex circuits which have been etched onto tiny chips of semiconductor (silicon). The chip is packaged in a plastic holder with pins spaced on a 0.1-inch grid which will fit the holes on stripboard and breadboards. Very fine wires inside the package link the chip to the pins.
  • 14 Contacts per row
  • 1000VACrms Minimum withstanding voltage
  • 30MR Maximum at 6VDC Contact resistance

Applications

Industrial

Product Information


:
28Contacts

:
DIP Socket

:
2.54mm

:
-

:
15.24mm

:
Copper Alloy

:
Tin Plated Contacts
