82-804

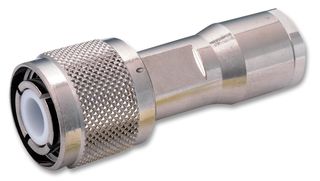

The 82-804 is a UG-59B/U RF Connector, HN-type series, HN-type straight Clamp Plug with silver-plated brass contacts and solder contact termination. Body made up of brass with nickel-plated finish and PTFE insulator. This HN-type connector is medium sized, weatherproof units designed for high voltage applications. This connector features captivated contact design which prevents contact recession under extreme temperatures and mechanical stresses. HN connector is capable of handling up to 5000V, making them ideal for use in high power industrial applications from DC to 4GHz. This RF connector is designed for RG-213, RG-214, RG-225, RG-302 and RG-393 cable.

• Captivated contacts prevent movement under temperature extremes
• Threaded coupling mechanism
• Standard polarity
• Standard thread direction
• 1500V Peak voltage rating
• 500 Mating cycles
• -65 to 165°C Temperature range

Applications

RF Communications, Sensing & Instrumentation, Test & Measurement
