C016 20H003 100 10
Circular Connector, Circular Industrial, Ecomate C016 Series, Cable Mount Plug, 4 Contacts

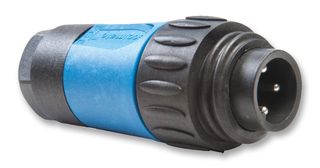

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMPHENOL SINE/TUCHEL
Manufacturer Part NoC016 20H003 100 10
Order Code1188972
Product RangeEcomate C016 Series
Technical Datasheet
1,898 In Stock
Need more?
1898 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.1,166.030 |
| 10+ | Rs.1,072.850 |
| 25+ | Rs.1,015.170 |
| 50+ | Rs.968.140 |
| 100+ | Rs.923.770 |
| 250+ | Rs.867.860 |
| 500+ | Rs.827.930 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.1,166.03
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMPHENOL SINE/TUCHEL
Manufacturer Part NoC016 20H003 100 10
Order Code1188972
Product RangeEcomate C016 Series
Technical Datasheet
Connector TypeCircular
Product RangeEcomate C016 Series
Circular Connector Shell StyleCable Mount Plug
No. of Contacts4Contacts
Circular Contact TypeScrew Pin
Coupling StyleThreaded
Connector Body MaterialNylon (Polyamide) Body
Connector Body Plating-
Contact Material-
Contact PlatingSilver
SVHCNo SVHC (17-Dec-2014)
Product Overview
The C016 20H003 100 10 is a 3 + PE-position Male Cable Connector with silver-plated contacts, polyamide (PA 6/PA 6.6) housing and insert. 2.5mm² maximum wire gauge, screw termination and cable retention + clamping ring strain relief.
- ≤5mΩ Contact resistance
- ≥10⁸Ω Insulation resistance
- ≥500 Mating cycles
- IP65/67 Protection rating
- UL94V-0 Flammability rating
Applications
Power Management, Test & Measurement
Technical Specifications
Connector Type
Circular
Circular Connector Shell Style
Cable Mount Plug
Circular Contact Type
Screw Pin
Connector Body Material
Nylon (Polyamide) Body
Contact Material
-
SVHC
No SVHC (17-Dec-2014)
Product Range
Ecomate C016 Series
No. of Contacts
4Contacts
Coupling Style
Threaded
Connector Body Plating
-
Contact Plating
Silver
Associated Products
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Dec-2014)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.041
