ANALOG DEVICES MAX30102ACCEVKIT#
Evaluation Module, MAX30102 Pulse Oximeter & Heart Rate Monitor, Wearable Health
- Manufacturer:
- ANALOG DEVICES ANALOG DEVICES
- Manufacturer Part No:
- MAX30102ACCEVKIT#
- Order Code:
- 2668588
-
- Technical Datasheet:
- MAX30102ACCEVKIT# Datasheet
- ECAD / MCAD
-
Alternatives for MAX30102ACCEVKIT#
Product Overview

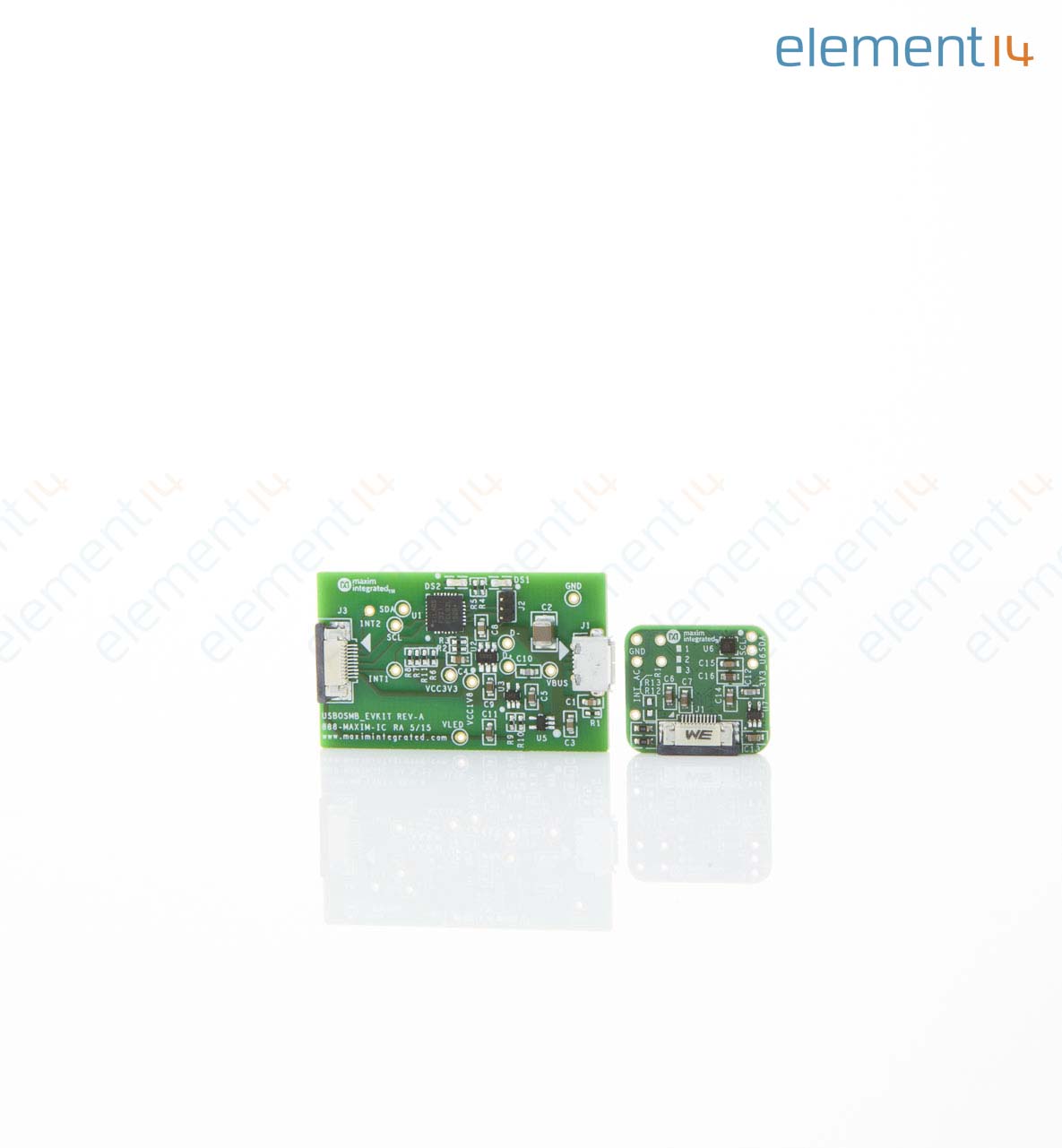

The MAX30102ACCEVKIT# is an evaluation kit for MAX30102 IC. The MAX30102 evaluation kit (EV kit) provides a proven design to evaluate the MAX30102 integrated pulse-oximetry and heart-rate monitor integrated circuit (IC). The EV kit consists of two boards. USBOSMB is the mother board and MAX30102DBEVKIT is the daughter board that includes the MAX30102 and an accelerometer. The EV kit is powered using the USB supply to generate +1.8V for the sensor and +4.5V for the internal LEDs of the MAX30102 and +3.3V for the accelerometer. The EV kit comes with a MAX30102EFD+ installed in a 14-pin OESIP package.
- Real-time monitoring
- Flexible PCB design
- USB powered
- On-board accelerometer
- Proven PCB layout
- Fully assembled and tested
- Windows 7 and Windows 8/8.1-compatible software
Applications
System Monitoring
Contents
USBOSMB, MAX30102DBEVKIT, 10pin FFC cable, Micro USB cable.
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Sensor
- :
- Maxim Integrated Products
- :
- MAX30102
- :
- Pulse Oximeter & Heart Rate Monitor
- :
- Eval Board MAX30102
- :
- -
