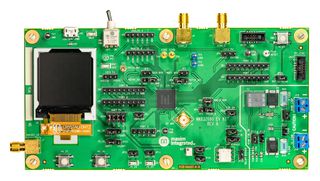

ANALOG DEVICES MAX32680EVKIT#
Evaluation Board, MAX32680, ARM Cortex-M4F
- Manufacturer:
- ANALOG DEVICES ANALOG DEVICES
- Manufacturer Part No:
- MAX32680EVKIT#
- Order Code:
- 3798619
-
- Technical Datasheet:
- MAX32680EVKIT# Datasheet
- ECAD / MCAD
-
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Analog Devices
- :
- -
- :
- -
- :
- ARM
- :
- Cortex-M4F
- :
- MAX32680
- :
- Eval Board MAX32680 w/Preprogrammed Demo, MAX32625PICO Debugger w/Cables, USB-A to Micro-B Cable
- :
- -
Technical Documents (1)
Product Overview
MAX32680 evaluation kit (EV kit) provides a platform for evaluation capabilities of the MAX32680 microcontroller, which is an advanced system-on-chip (SoC) designed for industrial and medical sensors. Power regulation and management is provided by a single-inductor multiple-output (SIMO) buck regulator system and contains the latest generation Bluetooth® 5.2 Low Energy (LE) radio.
- SMA Connector for Attaching an External Bluetooth Antenna
- 128 x 128 (1.45in) colour TFT display with SPI interface
- Two selectable on-board, high-precision voltage references
- USB 2.0 micro B to serial UARTs, UART1 and LPUART0 interface is selectable through on-board jumpers
- All GPIOs signals accessed through 0.1in headers
- Access to four analogue inputs through SMA connectors configured as differential
- Access to eight analogue inputs through 0.1in headers configured as single-end
- Optional discrete filter for the twelve analogue inputs
- DAC accessed through SMA connector or test point
- 10-Pin SWD Connector, 10-Pin RV JTAG Connector, Board Power Provided by USB Port
Contents
MAX32680 EV kit containing a MAX32680 with a preprogramed demo, MAX32625PICO debugger w/cables, One USB standard-A-to-micro-B cable.
Available for back order
Deliveries start from 27/12/23
×
4 more will be available on 27/12/23
10
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier.
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
Rs.15,654.60
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 1 Minimum: 1
