AES-Z7MB-7Z020-SOM-I-G/REV-H

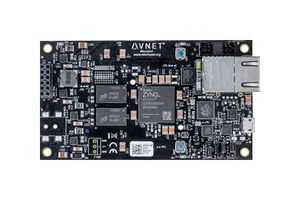

MicroZed™ 7020 industrial SOM is a low-cost development board based on the Xilinx Zynq®-7000 All Programmable SoC. Its unique design allows it to be used as both a stand-alone evaluation board for basic SoC experimentation, or combined with a carrier card as an embeddable system-on-module (SOM). MicroZed contains two I/O headers that provide connection to two I/O banks on the programmable logic (PL) side of the Zynq®-7000 AP SoC device. In stand-alone mode, these 100 PL I/O are inactive. When plugged into a carrier card, the I/O are accessible in a manner defined by the carrier card design. Thus designers can start with MicroZed in stand-alone mode as a learning platform and then easily expand its functionality as a SOM through the addition of an off-the-shelf or custom designed carrier card. This combined stand-alone/SOM approach can quickly move a design idea from concept to production, making MicroZed the ideal platform for SoC based applications.

• XC7Z020-1CLG400C SOC
• 1GB of DDR3 SDRAM, 128Mb of QSPI Flash memory
• 10/100/1000 Ethernet, USB 2.0, USB-UART interface
• User I/O (via dual board-to-board connectors)
• 2x6 Digilent Pmod® compatible interface providing 8 PS MIO connections for user I/O
• Xilinx PC4 JTAG configuration port
• PS JTAG pins accessible via Pmod
• 33.33MHz oscillator
• User LED and push switch
