Circular Connector, 680 Series, Cable Mount Receptacle, 4 Contacts, Solder Socket

09 0310 00 04 - Circular Connector, 680 Series, Cable Mount Receptacle, 4 Contacts, Solder Socket
09 0310 00 04 - Circular Connector, 680 Series, Cable Mount Receptacle, 4 Contacts, Solder Socket

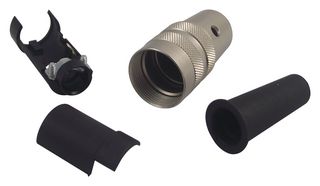

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
BINDER BINDER
Manufacturer Part No:
09 0310 00 04
Order Code:
1122591
Product Range
680 Series
Technical Datasheet:
09 0310 00 04   Datasheet
See all Technical Docs

Product Overview

The 09 0310 00 04 is a 4-contact 250V/6A unshielded straight miniature female Circular Connector with silver-plated bronze contacts, PBT (UL94V-0) contact body, PA (UL94 HB) housing. The 680 series receptacle with M16 screw locking system, solder termination for easy shield or ground connection, cable mounting style. It accepts 20AWG (0.75mm²) wire, 3 to 6mm cable outlet. It has integral bend protection sleeve.
  • 1500V Rated impulse voltage
  • <=5mR Volume resistivity
  • >500 mating cycles Mechanical operation
  • IP40 Protection rating

Applications

Industrial

Product Information


:
680 Series

:
Cable Mount Receptacle

:
4Contacts

:
Solder Socket

:
-

:
Nylon (Polyamide) Body

:
-

:
Bronze

:
Silver
