Advanced Magnetic Solutions
Extensive range of AECQ-200, industrial and consumer-grade products
One of the broadest portfolios of industry-leading catalog and custom magnetics that includes high efficiency, high frequency power inductors and transformers EMC compliance devices, signal transformers, common mode chokes and ferrite cores.
Our advanced magnetics components are designed to meet essential power application requirements for:
Power conversion
Isolation
EMC compliance
Signal integrity
Increased power density
Excellent thermal management
Applications / markets
Products

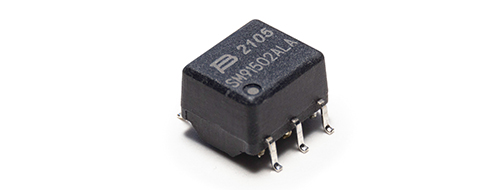

SM91502ALA transformer
AEC-Q200 compliant BMS (Battery Management System) signal transformer
Key features & benefits
- First pin auto-termination
- Working voltage: 1000 VDC
- Hi-Pot: 4300 VDC
- Single channel with integrated choke
- Functional insulation SM91502ALA BMS transformer
- Developed for use with analog device’s model LTC6804-1/681X, NXP’s model MC33771/33772 and texas instruments’ model BQ79616
- AEC-Q200 compliant

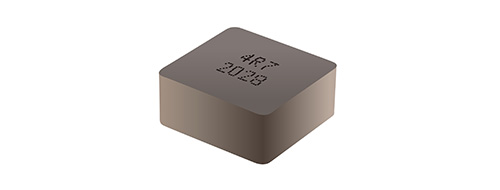

SRP15xxCA series
AEC-Q200 compliant high current shielded power inductors
Key features & benefits
- Shielded construction
- Metal alloy powder core
- High saturation current
- Low buzz noise
- Flat wire
- AEC-Q200 compliant

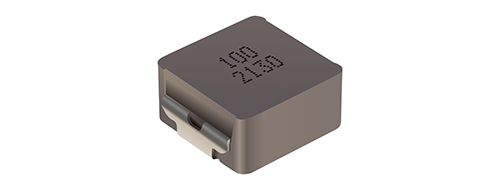

SRP1265WA / SRP1038WA series
Automotive grade high current shielded power inductors
Key features & benefits
- Shielded construction for low radiation
- Metal alloy powder core for high saturation current
- Wide side terminal for enhanced mechanical strength
- High vibration resistance (15Gtypical, 30Gpeak)
- High operating temperature
- Low buzz noise
- AEC-Q200 compliant

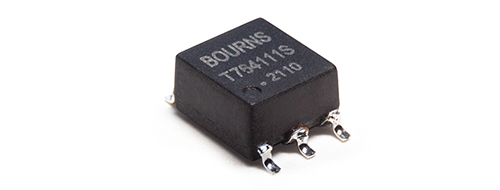

PAD00x-T764 transformer
Industrial push-pull isolation transformer
Key features & benefits
- Lowprofile and small size
- Designed to comply with IEC 62368F
- Functional insulation for 400 Vrms continuous operation voltage
- Operating temperature:-40 °C to
+125 °C
Applications:
- Isolated RS-485/RS-232 power supplies
- Industrial automation
- AC motor drives
- Smart metering
- Solar inverters

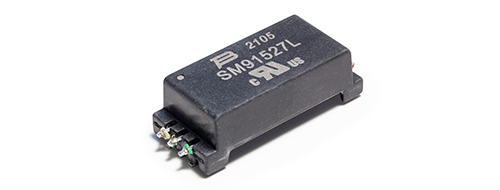

SM91527L / SM91519L transformers
BMS (Battery management system) signal transformers
Key features & benefits
- Working voltage up to 1500 VDC
- Hi-Pot: 7640 VDC
- Developed for use with NXP model MC33771C series and ADI model LTC6804/681x series
- Design construction: Reinforced insulation between primary and secondary per IEC 62477-1,
IEC 60664-1 and IEC 62368-1 - UL recognized per UL62368-1
- Creepage distance > 15 mm, pollution degree 2, material group CTI I

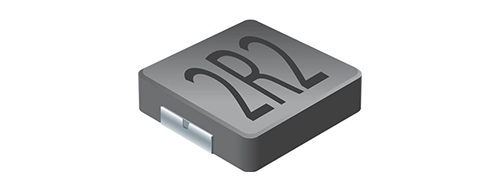

SRP4020TA series
SMD high current shielded power inductor series for automotive applications
Key features & benefits
- Shielded construction
- Carbonyl powder core
- High saturation current
- Inductance range: 0.1 to 22µH
- AEC-Q200 compliant

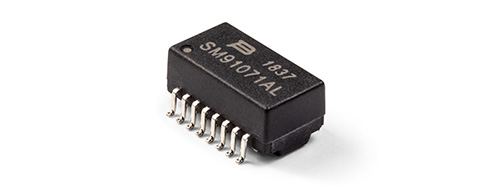

SM9107xAL transformers
AEC-Q200 compliant LAN 10/100 Base-T transformers
Key features & benefits
- Designed to meet IEEE802.3u (100Base-T)
- Expanded temperature range: -40 to +125°C
- AEC-Q200 compliant

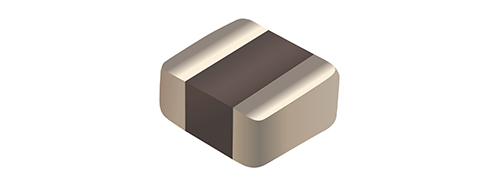

SRNxx30HA series
AEC-Q200 compliant semi-shielded power inductor series featuring high operating temperature
Key features & benefits
- Semi-shielded construction
- High operating temperature
- AEC-Q200 compliant
