SMM6-5-K-P5
AC/DC Power Supply, ITE & Medical, 1 Output, 6 W, 5 VDC, 1.2 A

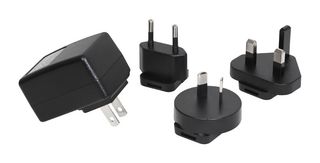

Image is for illustrative purposes only. Please refer to product description.
ManufacturerCUI
Manufacturer Part NoSMM6-5-K-P5
Order Code3594814
Product RangeSMM6 Series
Technical Datasheet
119 In Stock
Need more?
119 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.2,711.220 |
| 5+ | Rs.1,320.630 |
| 10+ | Rs.1,199.560 |
| 20+ | Rs.1,078.490 |
| 50+ | Rs.927.440 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,711.22
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCUI
Manufacturer Part NoSMM6-5-K-P5
Order Code3594814
Product RangeSMM6 Series
Technical Datasheet
Power Supply ApplicationsITE & Medical
No. of Outputs1 Output
Output Power Max6W
Output Voltage - Output 15VDC
Output Current - Output 11.2A
Output Voltage - Output 2-
Output Current - Output 2-
Output ConnectorBarrel Plug Center Positive 2.1mm x 5.5mm x 9.5mm
Output Voltage - Output 3-
Output Current - Output 3-
Power Supply Output TypeFixed
Input Voltage VAC90V AC to 264V AC
Product RangeSMM6 Series
Plug TypeMains Plug Sold Separately
SVHCLead (21-Jan-2025)
Product Overview
SMM6 series is a family of 6W medical wall plug-in AC to DC power supplies with interchangeable AC blades certified to the medical 60601-1 edition 3.1 safety standards for 2 x MOPP applications and 4th edition EMC requirements. Designed for global use, these medical power supplies include plug options for the United States, Europe, the United Kingdom, Australia, and China, making them ideal for hospital and dental applications where reliability and regulatory compliance are major concerns.
- Output voltage is 5VDC, maximum output current is 1.2A, maximum output power of 6W
- Approved by UL/cUL 60601-1 (medical), TUV, CB, PSE (ITE)
- Operating temperature range from 0 to 40°C
- Interchangeable AC blades, compact size
- Meets DoE Level VI efficiency
- Dimension is 57 x 39 x 34mm
- Weight is 70g
- No blades included
Technical Specifications
Power Supply Applications
ITE & Medical
Output Power Max
6W
Output Current - Output 1
1.2A
Output Current - Output 2
-
Output Voltage - Output 3
-
Power Supply Output Type
Fixed
Product Range
SMM6 Series
SVHC
Lead (21-Jan-2025)
No. of Outputs
1 Output
Output Voltage - Output 1
5VDC
Output Voltage - Output 2
-
Output Connector
Barrel Plug Center Positive 2.1mm x 5.5mm x 9.5mm
Output Current - Output 3
-
Input Voltage VAC
90V AC to 264V AC
Plug Type
Mains Plug Sold Separately
Technical Docs (2)
Associated Products
5 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85044029
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.07
