UF08B100

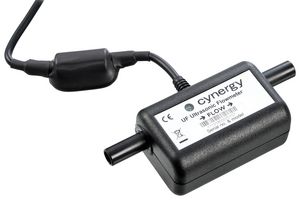

The UF08B100 is a 0 to 8L/minute Ultrasonic Flowmeter with ABS black and Polylac PA-757 case, glass filled plastic tube, 8-core PVC sheathed 100cm long standard connection and pulse or analogue output. This UF series flowmeter design provides a high accuracy, non-invasive, flow measurement device at a fraction of other current non-invasive systems. The unique measurement technique automatically compensates for viscosity and temperature variations. The measurement of flow is by ultrasonic transit time in-line cell. The flow path is designed to minimise pressure drop and having no moving parts within, will not clog or jam. The sensor also allows contaminants to pass through without affecting its performance.

• 3/8" Straight tube connection thread
• Ultrasonically welded, not liquid proof case integrity
• Non-invasive sensor technology
• Fully electronic
• Automatic viscosity and temperature compensation
• Low pressure drop
• LED indication of no liquid and of flow rate
• Unaffected by fluid contaminants

Applications

Sensing & Instrumentation
