686-0032221-111

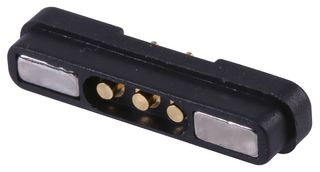

Magnetic Connector, 3 Contacts, Receptacle, Straight, 2.7 mm, 2 A, Black
Image is for illustrative purposes only. Please refer to product description.
No Longer Manufactured
Product Information
ManufacturerEDAC
Manufacturer Part No686-0032221-111
Order Code4047160
Also Known As686E0321250110E
No. of Contacts3Contacts
Connector OrientationStraight
Pitch Spacing2.7mm
Current Rating2A
Connector ColourBlack
Voltage Rating12V
Product Range-
SVHCNo SVHC (19-Jan-2021)
Product Overview
The 686-0032221-111 from EDAC is a 3 Pin magnetic pogo rectangular plug socket.
- Rated 2A at 12V DC
- Dimensions: 21.3x6.6x4.5mm
Technical Specifications
No. of Contacts
3Contacts
Connector Orientation
Straight
Current Rating
2A
Voltage Rating
12V
SVHC
No SVHC (19-Jan-2021)
Gender
Receptacle
Pitch Spacing
2.7mm
Connector Colour
Black
Product Range
-
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85381090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (19-Jan-2021)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.009072
