DF19-20S-1C

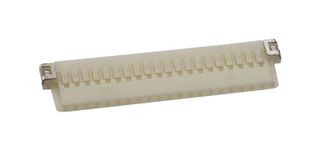

Connector Housing, DF19 Series, Receptacle, 20 Ways, 1 mm, DF19 Series Contacts

HIROSE(HRS) DF19-20S-1C
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
DF19-20S-1C
Order Code:
2427606
Product Range
DF19 Series
Also Known As:
685-0011-6-00
Technical Datasheet:
DF19-20S-1C   Datasheet
See all Technical Docs

Product Range Selector (DF19 Series)

See all from this product range

Product Overview

The DF19 series board to cable/board to FPC/board to micro-coaxial Cable Connector accepts discrete wire, thin micro-coaxial cable and FPC. The same receptacle will accept plugs terminated with discrete wire, FPC or micro-coaxial cable. The plug assembly external dimensions remain the same when is terminated with discrete wire, FPC or micro- coaxial cable. The device design engineers have a choice of mounting styles-top-board, offset, reverse mount offset and vertical. The metal grounding plates connect with the common ground line.
  • Small configuration and board space
  • Common use of receptacle
  • Uniform external dimensions
  • Variety of mounting styles
  • Ground connection

Applications

Portable Devices, Consumer Electronics

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
DF19 Series

:
Receptacle (View Associated Connectors)

:
20Ways

:
1mm

:
DF19 Series Contacts

Find similar products Choose and modify the attributes above to find similar products.
