MXR-8P-8P(71)
Circular Connector, Circular Industrial, MXR Series, Cable Mount Plug, 8 Contacts, Solder Pin

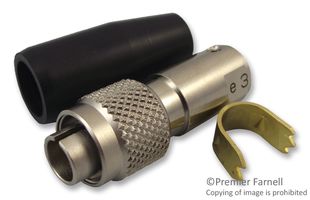

Image is for illustrative purposes only. Please refer to product description.
ManufacturerHIROSE / HRS
Manufacturer Part NoMXR-8P-8P(71)
Order Code1077731
Product RangeMXR Series
Technical Datasheet
No Longer Manufactured
Product Information
ManufacturerHIROSE / HRS
Manufacturer Part NoMXR-8P-8P(71)
Order Code1077731
Product RangeMXR Series
Technical Datasheet
Connector TypeCircular Industrial
Product RangeMXR Series
Circular Connector Shell StyleCable Mount Plug
No. of Contacts8Contacts
Circular Contact TypeSolder Pin
Coupling Style-
Connector Body MaterialAluminium Alloy Body
Connector Body Plating-
Contact MaterialBrass
Contact PlatingGold
Product Overview
The MXR-8P-8P(71) is a 8-contact miniature push-pull Circular Connector with gold-plated contacts, ground function, plug shell and male contacts. The single action push-pull lock function allows quick connections and disconnections as well as high density mounting. A sequential mating type is available. This version allows for the contacts to mate in a sequenced order.
- 20mΩ Maximum contact resistance
- 1000MΩ at 100VDC Minimum insulation resistance
- 2A Rated current
- 100VAC/140VDC Rated voltage
- PBT resin insulator
- -25 to +85°C Operating temperature range
Applications
Industrial
Technical Specifications
Connector Type
Circular Industrial
Circular Connector Shell Style
Cable Mount Plug
Circular Contact Type
Solder Pin
Connector Body Material
Aluminium Alloy Body
Contact Material
Brass
Product Range
MXR Series
No. of Contacts
8Contacts
Coupling Style
-
Connector Body Plating
-
Contact Plating
Gold
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.015422
