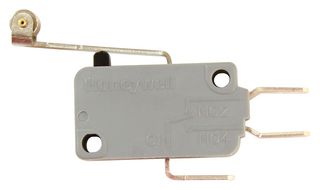

V15T16-CZ100A06

V15T16-CZ100A06 is a V15 series, MICRO SWITCH™ V-Basic standard electromechanical basic switch. This electromechanical switch designed for enhanced reliability at a great value. This switch is often ideal for “low cost-of-failure” – where the cost to replace the switch or to service any failure related to the switch is minimal. The V15 is designed for applications requiring ≥ 100g of operating force and electrical ratings ranging from 16A to 26A. The V15 series switch offers a wide range of standard offerings, including a choice of actuators, electrical ratings, operating forces, and circuitry, and holds global approvals (ENEC, CQC, UL, cUL). Potential applications include appliance, gaming, vending machines, water heaters, industrial controls.

• 125°C temperature grade, ENEC/CQC: 16(4)A 250Vac UL/cUL: 16 1/2HP 125/250Vac (electrical rating)
• 6.35 x 0.80mm quick disconnect termination style, SPDT circuit
• 100gf 0.98 N max operating force at pin plunger, far from pin plunger lever
• Long roller lever type, metric Ø3.1mm mounting holes
• Broad range of electrical loads, precision operation and application versatility
• Accepts insulated connections, most quick connect openings
• Reliability, repeatability within range of conditions
• ≥ 100mohm (500Vdc) insulation resistance
• 100milliohm max contact resistance
• Storage temperature range from -25°C to 100°C
