TL-8A-11SMA-11SMA-03000-51
RF / Coaxial Cable Assembly, 9.8 ft, 3 m, SMA Straight Plug, SMA Straight Plug, 50 ohm

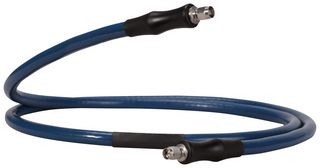

Image is for illustrative purposes only. Please refer to product description.
ManufacturerHUBER+SUHNER
Manufacturer Part NoTL-8A-11SMA-11SMA-03000-51
Order Code2506757
Product RangeTL-8A Series
Your Part Number
Technical Datasheet
22 In Stock
Need more?
22 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.31,989.030 |
| 5+ | Rs.31,349.250 |
| 10+ | Rs.30,709.470 |
| 25+ | Rs.30,069.690 |
| 50+ | Rs.29,429.910 |
| 100+ | Rs.28,790.130 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.31,989.03
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerHUBER+SUHNER
Manufacturer Part NoTL-8A-11SMA-11SMA-03000-51
Order Code2506757
Product RangeTL-8A Series
Technical Datasheet
Cable Length - Imperial9.8ft
Connector to ConnectorSMA Plug to SMA Plug
Cable Length - Metric3m
Coaxial Cable Type-
Connector Type ASMA Straight Plug
Connector Type BSMA Straight Plug
Impedance50ohm
Jacket ColourBlack
Product RangeTL-8A Series
Product Overview
The TL8A-11SMA-11SMA-03000-51 is a 3mm RF Coaxial Cable Assembly with SMA straight plug to SMA straight plug connection. It has steel body with Cu-Be/gold centre contact and steel nut. It is used for indoor applications consisting of a high flexible PE foamed cable with armouring protection and for frequency up to 8GHz.
- <gt/>3000 Mating cycle
- 200N Tensile force (maximum)
- -5 to 85°C Operating temperature range
- 500Vrms Dielectric withstand voltage
Applications
RF Communications, Industrial
Technical Specifications
Cable Length - Imperial
9.8ft
Cable Length - Metric
3m
Connector Type A
SMA Straight Plug
Impedance
50ohm
Product Range
TL-8A Series
Connector to Connector
SMA Plug to SMA Plug
Coaxial Cable Type
-
Connector Type B
SMA Straight Plug
Jacket Colour
Black
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.525
