                      EVAL3KW2LLCP747TOBO1

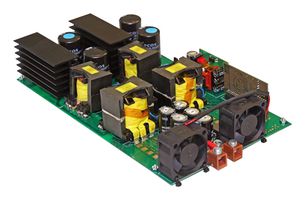

                      Evaluation Board, CoolMOS P7 Superjunction MOSFET, LLC SMPS, Industrial/Telecoms, 3kW

                      INFINEON EVAL3KW2LLCP747TOBO1
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerINFINEON
                      Manufacturer Part NoEVAL3KW2LLCP747TOBO1
                      Order Code2981498
                      Also Known AsSP001681996, EVAL_3KW_2LLC_P7_47
                      See all Technical Docs
                      Available to Order
                      Manufacturer Standard Lead Time: 28 week(s)

                      Notify me when back in stock

                      QuantityPrice
                      1+Rs.57,912.830
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      Rs.57,912.83
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerINFINEON
                      Manufacturer Part NoEVAL3KW2LLCP747TOBO1
                      Order Code2981498
                      Also Known AsSP001681996, EVAL_3KW_2LLC_P7_47
                      Silicon ManufacturerInfineon
                      Silicon Core NumberIPW60R037P7
                      Kit Application TypePower Management
                      Application Sub TypeSMPS
                      Kit ContentsEval Board IPW60R037P7
                      Product Range-
                      Automotive Qualification Standard-
                      SVHCNo SVHC (21-Jan-2025)

                      Product Overview

                      Evaluation board shows how to design a dual phase LLC system solution of a Server SMPS with the target to meet 80+ Titanium® standard efficiency requirements. On this purpose there has been applied latest CoolMOS™ technology IPP60R037P7 600V Power MOSFET on the primary side and OptiMOS™ Low Voltage Power MOSFET in SuperSO8 BSC093N15NS5 in the synchronous rectification secondary stage, in combination with QR CoolSET™ ICE2QR2280Z, 1EDI60N12AF EiceDRIVER™ high voltage, high speed driver ICs for HV MOSFETs, Low Side Gate Driver 2EDN7524R for SR MOSFETs and digital LLC Controller XMC4400. Target applications are telecom rectifiers, industrial SMPS and industrial battery chargers.

                      • Dual phase concept, full digital control
                      • Graphical user interface
                      • High and flat efficiency plot
                      • Optimal use of CoolMOS™ and OptiMOS™ best-in-class devices
                      • Prevention/protection of LLC critical operating conditions
                      • Flexible and user friendly design parameters setting
                      • 44 to 58VDC output voltage
                      • 55A max output current
