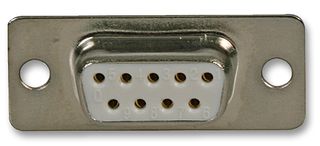

D Sub Connector, Standard, Receptacle, Standard D, 9 Contacts, DE, Solder
Image is for illustrative purposes only. Please refer to product description.
ManufacturerITW MCMURDO
Manufacturer Part NoDE9SF
Order Code1075228
Product RangeStandard D
Technical Datasheet
No Longer Manufactured
Product Information
ManufacturerITW MCMURDO
Manufacturer Part NoDE9SF
Order Code1075228
Product RangeStandard D
Technical Datasheet
D Sub Connector TypeStandard
Product RangeStandard D
No. of Contacts9Contacts
D Sub Shell SizeDE
Contact Termination TypeSolder
Connector MountingThrough Hole Mount
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Connector Body MaterialSteel Body
SVHCNo SVHC (17-Jan-2022)
Product Overview
The DE9SF from ITW Mcmurdo is a standard D series, high performance 9 position D sub receptacle connector with DE shell size. Standard D series connectors provide greater user flexibility and meet the most demanding requirements. This connector has UL94 V-0 rated thermoplastic insulation.
- Zinc/yellow passivated steel shell for EMI/RFI shielding
- Copper alloy contacts with hard acid gold plating
- Solder bucket termination
- Standard fixing holes
- High temperature range from -55°C to 105°C
- Current rating of 6.5A for individual contact (in isolation) at 70°C
- Current rating of 3.3A for all contacts (simultaneously) at 70°C
- Working voltage of 500V (DC or AC peak)
- Maximum contact resistance of 10mohm
- Minimum insulation resistance of 1000mohm
