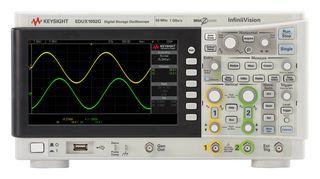

EDUX1002G

The EDUX1002G from Keysight Technologies is an InfiniiVision 1000 X-series 50MHz, 2 channel oscilloscope with function generator. Educator resources are included standard and this EDU model is especially good for students and beginners. With the unique, Keysight-designed MegaZoom IV custom ASIC technology, the InfiniiVision 1000 X-series delivers up to 50,000wfms/sec. Waveform tools include quick access to waveform math like FFT, add, subtract, multiply and divide. Reference waveforms allow quick comparison of stored waveforms. External trigger can be used as a 3rd channel and displayed on-screen to create a bus-type display. Built-in WaveGen supports sine, square, ramp, pulse, DC and noise with amplitude and frequency modulation. The built-in function generator enables to generate signals user needs to quickly stimulate design. Signals are easily synchronized for measuring stimulus/response testing including frequency response analysis (Bode gain and phase).

• Maximum sample rate is 1GSa/s
• Maximum memory depth is 100Kpts
• 7inch TFT LCD WVGA display
• Calculated rise time (10 to 90%) is ≤ 7ns
• Built-in USB host and USB device ports make PC connectivity easy
• Access 24 built-in automatic measurements
• Test quickly and easily with a simple, intuitive user interface and built-in help & training signals
• Dimension is 314mm (12.4 in) x 165mm (6.5 in) x 130mm (5.1 in)
• UL61010-1 3rd edition, CAN/CSA-C22.2 no. 61010-1-12 safety
• DVM (digital voltmeter DSOXDVM) upgrade available free for 1000 X-Series, product registration required to download via www.keysight.com/find/1000X-Series-DVM
• The Educator’s Oscilloscope Training Kit (DSOXEDK) upgrade is also free and integrated with all InfiniiVision X-Series. Visit www.keysight.com/find/scopes-edu

Applications

Test & Measurement, Hobby & Education, Medical

Contents

A BenchVue software license (BV0004B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences. EDUX1002G oscilloscope, (2) N2142A 75 MHz 10:1/1:1 switchable passive probes, Secure erase, Built-in help language support, Interface language support GUI, Power cord.

Notes

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
