L-59SURKCGKC
LED, Green, Red, Through Hole, T-1 3/4 (5mm), 24 °, Round, R 30mA, G 25mA
2,500 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 5+ | Rs.28.400 |
| 10+ | Rs.22.620 |
| 25+ | Rs.21.150 |
| 50+ | Rs.19.100 |
| 100+ | Rs.17.170 |
| 150+ | Rs.16.240 |
| 200+ | Rs.15.340 |
| 250+ | Rs.15.040 |
Product Information
Product Overview

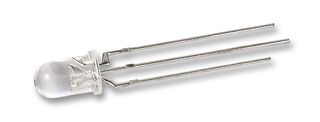

The L-59SURKCGKC from Kingbright is a through hole, round shape bi-colour LED. Bi-colour of LED are high efficiency red and green colour made with AlGaInP on GaAs substrate light emitting diode and AlGaInP on GaAs substrate light emitting diode. This LED is widely used because of low power consumption, long life, solid state reliability and uniform light output.
- Bulb size is T-1 3/4 (5mm)
- Forward voltage of 1.95V for red and 2.1V for green
- Forward current of 20mA for red and green
- Dominant wavelength of 630nm for red and 570nm for green
- Peak wavelength of 645nm for red and 574 for green
- Luminous intensity of 1200mcd for red and 900mcd for green
- Water clear lens type
- Viewing angle of 24°
- Common Cathode
Applications
LED Lighting, Portable Devices, Industrial, Consumer Electronics
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
Green, Red
T-1 3/4 (5mm)
Round
R 800mcd, G 200mcd
R 640nm, G 568nm
-
No SVHC (23-Jan-2024)
Through Hole
24°
R 30mA, G 25mA
R 1.85V, G 2.2V
-
-
