MB-ISK-S10-300-MCP-IEC (+MSC)
Thermocouple, IEC, K, Stainless Steel

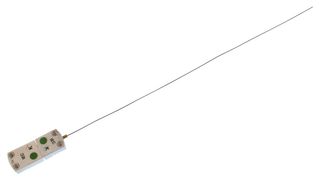

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLABFACILITY
Manufacturer Part NoMB-ISK-S10-300-MCP-IEC (+MSC)
Order Code4073436
Also Known AsXF-1906-FAR
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.5,198.490 |
| 5+ | Rs.4,892.270 |
| 10+ | Rs.4,696.710 |
| 25+ | Rs.4,536.140 |
| 50+ | Rs.4,434.870 |
| 100+ | Rs.4,339.660 |
| 500+ | Rs.4,273.200 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.5,198.49
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLABFACILITY
Manufacturer Part NoMB-ISK-S10-300-MCP-IEC (+MSC)
Order Code4073436
Also Known AsXF-1906-FAR
Technical Datasheet
Thermocouple TypeK
Measured Temperature Min-
Sensing Temperature Min-40°C
Measured Temperature Max-
Sensing Temperature Max750°C
Sensor Body MaterialStainless Steel
Lead Length - Imperial-
Lead Length - Metric-
Probe Length - Imperial11.8"
Probe Length - Metric300mm
Probe Diameter - Imperial0.04"
Probe Diameter - Metric1mm
Insulation-
Thermocouple TerminationMiniature Connector
Thermocouple Wire StandardIEC
Thermocouple ShieldingShielded
Product Range-
Product Overview
MB-ISK-S10-300-MCP-IEC (+MSC) is an IEC type K mineral insulated thermocouple with ceramic thermocouple plug and socket. 310 stainless steel sheath provides good corrosion and oxidation resistance to suit a wide range of processes, satisfactorily operates in sulphur bearing atmospheres. Typical applications include brick and cement kilns, glass industry, heat treatment and annealing furnaces, power stations, flues, heat exchangers etc. Single element, junction insulated from sheath (offers protection against spurious electrical signals).
- 310 stainless steel sheath
- Highly flexible, sheath can be bent/formed to suit many applications and processes
- Insulated hot junction
- Probe temperature range from -40°C up to +1100°C
- Supplied with a miniature ceramic plug (fitted) and socket (loose) (650°C)
- Connectors are white with colour coded dot on body
- Conforms to IEC 584 specification
- Sensor type is type K (nickel chromium/nickel aluminium) to IEC 584
- Termination is miniature ceramic plug, white with green dot, in accordance IEC 584
- Probe temperature range from -40°C to +750°C, 1mm probe diameter, 300mm probe length
Technical Specifications
Thermocouple Type
K
Sensing Temperature Min
-40°C
Sensing Temperature Max
750°C
Lead Length - Imperial
-
Probe Length - Imperial
11.8"
Probe Diameter - Imperial
0.04"
Insulation
-
Thermocouple Wire Standard
IEC
Product Range
-
Measured Temperature Min
-
Measured Temperature Max
-
Sensor Body Material
Stainless Steel
Lead Length - Metric
-
Probe Length - Metric
300mm
Probe Diameter - Metric
1mm
Thermocouple Termination
Miniature Connector
Thermocouple Shielding
Shielded
SVHC
No SVHC (21-Jan-2025)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:73269099
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.03
