31001110

Wire-To-Board Terminal Block, 5 mm, 10 Ways, 22 AWG, 14 AWG, 2 mm², Screw

31001110 - Wire-To-Board Terminal Block, 5 mm, 10 Ways, 22 AWG, 14 AWG, 2 mm², Screw

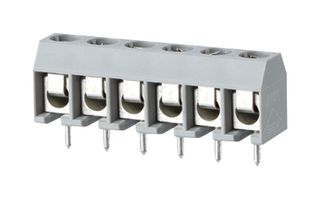

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
31001110
Order Code:
2774336
Technical Datasheet:
31001110   Datasheet
See all Technical Docs

Product Overview

The 31001110 from Metz Connect is RT015xxHDWC (Type 001) grey colour screw type solderable terminal block with 10 poles. It has 5mm centreline pitch and 90° direction of connection. It has extended wiring UL (wire range extended to number 30AWG for factory wiring. Two same size wires number 22-18AWG Cu Sol/Str for field wiring, number 30-18 Cu Sol/Str factory wiring), cRJUS (300V / 15A / 22 to 14AWG), SEV (130V / 17.5A / T60) approvals.
  • Wire protector, fittable without loss of poles
  • 0.4Nm (UL), 3.5lb-in (SEV) tightening torque, M3 screw thread, Sn wire protector surface
  • PA66 insulating material (class CTI 600), CuZn terminal body material, Ni + Sn terminal body surface
  • Rated wiring solid wire range from 0.34mm² to 2mm²
  • Rated wiring stranded wire range from 0.34mm² to 2mm²
  • Clearance and creepage distances is 2.6mm, solder pin length is 3.8mm
  • IP 10 protection category according to IEC 60529, minimum insulation strip length is 6mm
  • Lower limit temperature is -40°C, upper limit temperature is 105°C
  • Overvoltage category III, pollution degree 3, 63V rated voltage, 2.5KV rated test voltage
  • 0.9mm solder pin dimension, 1.3mm recommended PC board hole diameter

Applications

Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
5mm

:
10Ways

:
22AWG

:
14AWG

:
2mm²

:
Screw

:
15A

:
300V

:
Through Hole Right Angle

:
-

Find similar products Choose and modify the attributes above to find similar products.
