31157104
Pluggable Terminal Block, 5 mm, 4 Ways, 28 AWG, 20 AWG, 2.5 mm², Screw

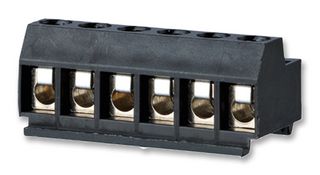

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.185.130 |
| 10+ | Rs.134.800 |
| 25+ | Rs.117.940 |
| 50+ | Rs.107.110 |
| 100+ | Rs.97.930 |
| 250+ | Rs.88.210 |
| 500+ | Rs.82.470 |
| 1000+ | Rs.77.890 |
| 5000+ | Rs.72.670 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.185.13
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMETZ CONNECT
Manufacturer Part No31157104
Order Code2434284
Technical Datasheet
Pitch Spacing5mm
No. of Positions4Ways
Wire Size (AWG)28AWG to 20AWG
Wire Size AWG Min28AWG
Wire Size AWG Max20AWG
Conductor Area CSA2.5mm²
Wire Connection MethodScrew
Rated Current13.5A
Rated Voltage250V
Product Range-
Product Overview
The 31157104 is a 4-pole black screw Pluggable Terminal Block with wire protector and fittable without loss of poles. It has top side pin insertion, wire perpendicular to plug direction, flat bottom for minimal installation height.
- IP20 Protection
- CTI600 Insulating material class
Applications
Industrial
Technical Specifications
Pitch Spacing
5mm
Wire Size (AWG)
28AWG to 20AWG
Wire Size AWG Max
20AWG
Wire Connection Method
Screw
Rated Voltage
250V
No. of Positions
4Ways
Wire Size AWG Min
28AWG
Conductor Area CSA
2.5mm²
Rated Current
13.5A
Product Range
-
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005
