31229103

Terminal Block, Header, 5.08 mm, 3 Ways, 15 A, 300 V, Through Hole Right Angle

31229103 - Terminal Block, Header, 5.08 mm, 3 Ways, 15 A, 300 V, Through Hole Right Angle

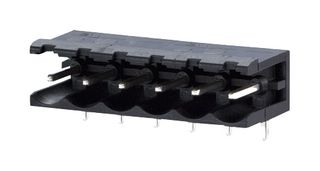

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
31229103
Order Code:
2774393
Technical Datasheet:
31229103   Datasheet
See all Technical Docs

Product Overview

The 31229103 from Metz Connect is a PT116xxHBEC (Type 229) series solderable pin header with 3 poles. The 5.08mm pitch, 90° terminals plugged into the PCB and then soldered.
  • Open ends fittable without loss of poles
  • Codeable
  • Insulating material is black colour PA66 (class CTI 600), contact pin material is CuFe
  • Solder pin dimension is 1mm x 1mm, solder pin length is 3.45mm
  • Recommended PC board hole diameter is 1.5mm
  • Clearance and creepage distances is 4.08mm
  • IP 00 protection category according to IEC 60529
  • Operating temperature range from -40°C to 105°C
  • Overvoltage category III, pollution degree 3, 320V rated voltage, 4KV rated test voltage
  • Approved by UL, CRJUS, SEV standards

Applications

Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Header

:
5.08mm

:
3Ways

:
15A

:
300V

:
Through Hole Right Angle

:
-
