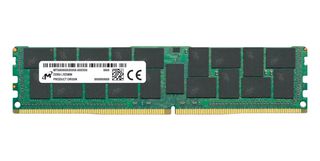

MTA72ASS8G72LZ-3G2R2
RAM Memory Module, 64 GB, 400 MHz, PC4-3200, 288-Pin DDR4 SDRAM LRDIMM, Server LRDIMM, 8G x 72bit
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 22 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | Rs.206,871.590 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.206,871.59
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Overview
MTA72ASS8G72LZ-3G2R2 is a DDR4 SDRAM LRDIMM memory module.
- Fast data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400
- Quad-rank, using 16Gb TwinDie DDR4
- On-board I²C temperature sensor with integrated serial presence-detect (SPD) EEPROM
- 16 internal banks (4 groups of 4 banks each)
- 64GB module density, 8 Gig x 72 configuration, 25.6GB/s module bandwidth
- 0.625ns/3200MT/s memory clock/data rate, 22-22-22 CL-nRCD-nRP clock cycles
- Frequency/CAS latency – 0.625ns at CL = 22 (DDR4-3200)
- 128K A[16:0] row address, 1K A[9:0] column address
- 16Gb TwinDie (4 Gig x 4), 16 banks device configuration, 4 CS-n[3:0] module rank address
- 288-pin DIMM package, commercial operating temperature range from 0 to 95°C
Technical Specifications
Memory Density
64GB
Memory Application
Server LRDIMM
Operating Temperature Max
95°C
Memory Speed
400MHz
Operating Temperature Min
0°C
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000001
