0906-4-15-20-75-14-11-0
Contact, Spring Loaded Pin, Radius, 2 A, 7.74 mm, 25 g
- Manufacturer:
- MILL MAX MILL MAX
- Manufacturer Part No:
- 0906-4-15-20-75-14-11-0
- Order Code:
- 2751179
- Product Range
- 0906 Spring-Loaded Pins
- Technical Datasheet:
- 0906-4-15-20-75-14-11-0 Datasheet
Product Range Selector (0906 Spring-Loaded Pins)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Spring Loaded Pin
- :
- -
- :
- Radius
- :
- 2A
- :
- 7.74mm
- :
- 25g
- :
- 60g
- :
- 0906 Spring-Loaded Pins
Technical Docs (2)
Product Overview

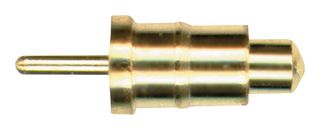

The 0906-4-15-20-75-14-11-0 from Mill Max is a through hole mount standard stroke discrete spring loaded pin contacts. It features a 0.0275" mid-stroke and 0.055" maximum stroke, endurance of 1,000,000cycles and a rated current of 2A continuous use (3A peak).
- Standard stroke, solder mount in 0.020 minimum mounting hole, contact length is 0.236"
- Force at mid stroke is 60g
- Initial force (pre-load) is 25g
- Gold plated beryllium copper spring
- Copper alloy with gold finish sleeve & plunger material
- Maximum contact resistance is 20mohm
- Operating temperature range from -55°C to +125°C
2,524 In stock Need more?
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier.
1 more will be available on 10/2/21
5,000 more will be available on 9/2/21
Extra stock is available upon order to the Supplier Lead Time which is approximately 15/3/21
2,524 available for 3 - 5 business days delivery
Rs.49.68
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 1 Minimum: 1
| Quantity | Price | Your Price |
|---|---|---|
| 1+ | Rs.49.68 | |
| 10+ | Rs.37.01 | |
| 100+ | Rs.32.37 | |
| 500+ | Rs.30.84 | |
| 1000+ | Rs.27.13 | |
