0926-1-15-20-75-14-11-0

Contact, Spring Loaded Pin, Point, 2 A, 5.21 mm, 25 g

MILL MAX 0926-1-15-20-75-14-11-0

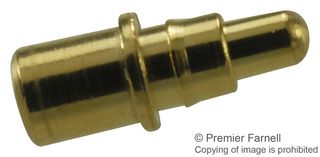

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MILL MAX MILL MAX
Manufacturer Part No:
0926-1-15-20-75-14-11-0
Order Code:
2751182
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Spring Loaded Pin

:
-

:
Point

:
2A

:
5.21mm

:
25g

:
60g

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

The 0926-1-15-20-75-14-11-0 from Mill Max is a discrete spring loaded pin contact. This low profile spring pin features a 0.0275" mid-stroke and 0.055" maximum stroke, endurance of 1,000,000cycles and a rated current of 2A continuous use (3A peak). Ideal for applications where above board height is limited. The low profile options maintain the quality and reliability of current Mill-Max spring pins by utilizing the same technology & internal spring components.
  • Low profile, standard stroke, solder mount in 0.074 minimum mounting hole
  • Force at mid stroke is 60g
  • Initial force (pre-load) is 25g
  • Gold plated beryllium copper spring
  • Copper alloy with gold finish sleeve & plunger material
  • Maximum contact resistance is 20mohm
  • Operating temperature range from -55°C to +125°C

224 In stock Need more?

224 available for 4 - 6 business days delivery

Rs.61.24

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price Your Price


1+ Rs.61.24
