19034-0005
Bullet Terminal, InsulKrimp 19034, 22AWG to 18AWG, Male Bullet, PVC (Polyvinylchloride)

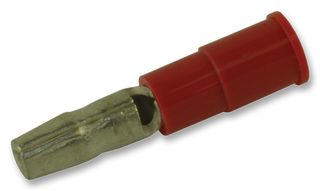

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No19034-0005
Order Code2396262
Product RangeInsulKrimp 19034
Also Known AsA-269X, GTIN UPC EAN: 800753047327
Technical Datasheet
11,268 In Stock
Need more?
2258 Delivery in 4-6 Business Days(UK stock)
9010 Delivery in 5-7 Business Days(US stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.32.500 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.32.50
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMOLEX
Manufacturer Part No19034-0005
Order Code2396262
Product RangeInsulKrimp 19034
Also Known AsA-269X, GTIN UPC EAN: 800753047327
Technical Datasheet
Product RangeInsulKrimp 19034
Wire Size (AWG)22AWG to 18AWG
Conductor Area CSA-
Terminal TypeMale Bullet
Insulator Colour-
Insulator MaterialPVC (Polyvinylchloride)
Terminal MaterialCopper
Bullet Diameter3.96mm
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 19034-0005 is an InsulKrimp™ male snap plug terminal made of copper with tin plated finish for 22 to 18AWG wire. This 19034 series partial insulated plug terminal comes with PVC insulation and closed barrel. Molex snap plug terminal is used in a variety of applications where a "quick disconnect" connection is desired. It is ideal for applications with space limitations, the round bullet like plug "snaps" into the female receptacle. Similar to other quick disconnects, the male and female terminals can be connected and disconnected multiple times.
- 22.61mm length
- Intermateable with other industry standard plugs and receptacles
- Designed for multi-connections and disconnections
- Provides design engineers a choice of size and current rating
- UL94V-0 flammability rating
- Maximum voltage is 600V
Applications
Commercial Vehicle, Consumer Electronics
Technical Specifications
Product Range
InsulKrimp 19034
Conductor Area CSA
-
Insulator Colour
-
Terminal Material
Copper
SVHC
No SVHC (21-Jan-2025)
Wire Size (AWG)
22AWG to 18AWG
Terminal Type
Male Bullet
Insulator Material
PVC (Polyvinylchloride)
Bullet Diameter
3.96mm
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001134
