54596-1210
Connector Housing, Mini Mi II 54596, Receptacle, 12 Ways, 1.25 mm

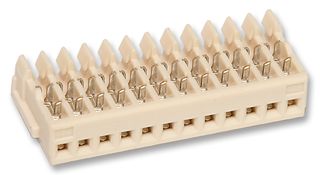

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No54596-1210
Order Code1507501
Product RangeMini Mi II 54596
Also Known AsGTIN UPC EAN: 800753280885
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerMOLEX
Manufacturer Part No54596-1210
Order Code1507501
Product RangeMini Mi II 54596
Also Known AsGTIN UPC EAN: 800753280885
Technical Datasheet
Product RangeMini Mi II 54596
No. of Positions12Ways
Pitch Spacing1.25mm
For Use WithMolex Mini Mi II 54596 Series Contacts
SVHCNo SVHC (15-Jan-2019)
Product Overview
- Mini Mi II wire-to-board receptacle housing assembly
- 1.25mm pitch single row housing
- Nylon housing
- Mates with 55451, 55447, 55454, 55659, 55456, 55482, 55450 series connector
- Current rating is 1.5A
- Voltage rating is 100V
Technical Specifications
Product Range
Mini Mi II 54596
No. of Positions
12Ways
For Use With
Molex Mini Mi II 54596 Series Contacts
Gender
Receptacle
Pitch Spacing
1.25mm
SVHC
No SVHC (15-Jan-2019)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2019)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001
