                      GU256X64D-7000

                      VFD Display, Dot Matrix, 256 x 64, 28.65mm x 115.05mm, Parallel / RS-232, , 4.75 V to 5.25 V

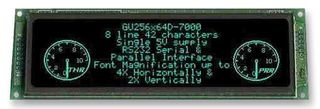

                      NORITAKE ITRON GU256X64D-7000
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerNORITAKE ITRON
                      Manufacturer Part NoGU256X64D-7000
                      Order Code1495429
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      No Longer Manufactured

                      Product Information

                      ManufacturerNORITAKE ITRON
                      Manufacturer Part NoGU256X64D-7000
                      Order Code1495429
                      Technical Datasheet

                      Data Sheet

                      Resolution256 x 64
                      Viewing Area (H x W)28.65mm x 115.05mm
                      Character FormatDot Graphic
                      Supply Voltage Min4.75V
                      Supply Voltage Max5.25V
                      Supply Current-
                      Operating Temperature Min-20°C
                      Operating Temperature Max70°C
                      Interface TypeParallel, RS-232
                      Product Range-
                      SVHCNo SVHC (17-Dec-2014)

                      Product Overview

                      The GU256X64D-7000 is a Dot Graphic VFD Module include the vacuum fluorescent display glass, VF drivers and micro-controller ICs with refresh RAM, character generator and interface logic. The high speed 8-bit parallel interface is 5V TTL/CMOS compatible suitable for connection to a host CPU bus. The asynchronous serial interface accepts baud rates up to 115200 with none parity. The module is ready to receive ASCII characters without initialization commands. The 7000/7003 versions have firmware offering 4 user definable window areas and support multi-size international fonts. Scroll and flash with graphic upload functions.

                      • 256 x 64 Dot graphic
                      • High brightness blue green display
                      • -20 to 70°C Operating temperature range
                      • 11 multi sized fonts
                      • High speed 8-bit parallel interface
                      • Asynchronous RS232 serial interface
                      • Economic low profile modules
                      • Scroll + image + fill commands

                      Applications

                      Imaging, Video & Vision, Communications & Networking

                      Technical Specifications

                      Resolution

                      256 x 64

                      Character Format

                      Dot Graphic

                      Supply Voltage Max

                      5.25V

                      Operating Temperature Min

                      -20°C

                      Interface Type

                      Parallel, RS-232

                      SVHC

                      No SVHC (17-Dec-2014)

                      Viewing Area (H x W)

                      28.65mm x 115.05mm

                      Supply Voltage Min

                      4.75V

                      Supply Current

                      -

                      Operating Temperature Max

                      70°C

                      Product Range

                      -

                      Technical Docs (1)

                      Technical Data Sheet EN

                      Legislation and Environmental

                      Country of Origin:
                      Country in which last significant manufacturing process was carried outCountry of Origin:
                      Japan
                      Country in which last significant manufacturing process was carried out
                      Tariff No:85414090
                      US ECCN:EAR99
                      EU ECCN:NLR
                      RoHS Compliant:Yes

                      RoHS

                      RoHS Phthalates Compliant:To be advised
                      SVHC:No SVHC (17-Dec-2014)
                      Download Product Compliance Certificate

                      Product Compliance Certificate

                      Weight (kg):.085
