INN3692C-H606-TL
Voltage Regulator, AC to DC Converter, Flyback, 85 VAC to 265 VAC, 12 W, -40 to 150 °C, InSOP-24D

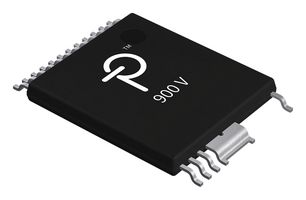

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPOWER INTEGRATIONS
Manufacturer Part NoINN3692C-H606-TL
Order Code3932031RL
Technical Datasheet
7,042 In Stock
Need more?
7042 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 100+ | Rs.87.300 |
| 250+ | Rs.85.310 |
| 500+ | Rs.83.320 |
| 1000+ | Rs.71.430 |
Price for:Each (Supplied on Cut Tape)
Minimum: 100
Multiple: 1
Rs.8,730.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPOWER INTEGRATIONS
Manufacturer Part NoINN3692C-H606-TL
Order Code3932031RL
Technical Datasheet
Input Voltage AC Min85V
Input Voltage Min85VAC
Input Voltage Max265VAC
Input Voltage AC Max265V
AC / DC Converter Case StyleInSOP-24D
IC Case / PackageInSOP-24D
No. of Pins24Pins
Power Rating Max12W
Power Rating12W
TopologyFlyback
IsolationIsolated
Power Switch Voltage Rating900V
Power Switch Current Rating440µA
Switching Frequency70kHz
IC MountingSurface Mount
Operating Temperature Min-40°C
Operating Temperature Max150°C
Product Range-
Qualification-
Technical Specifications
Input Voltage AC Min
85V
Input Voltage Max
265VAC
AC / DC Converter Case Style
InSOP-24D
No. of Pins
24Pins
Power Rating
12W
Isolation
Isolated
Power Switch Current Rating
440µA
IC Mounting
Surface Mount
Operating Temperature Max
150°C
Qualification
-
Input Voltage Min
85VAC
Input Voltage AC Max
265V
IC Case / Package
InSOP-24D
Power Rating Max
12W
Topology
Flyback
Power Switch Voltage Rating
900V
Switching Frequency
70kHz
Operating Temperature Min
-40°C
Product Range
-
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85044010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000001
