SW3938-D
POWER SUPPLY, PLUG-IN, 12V, 1.5A, 18W

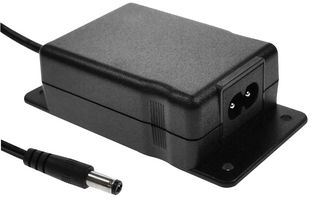

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPOWERPAX
Manufacturer Part NoSW3938-D
Order Code2060976
Your Part Number
Technical Datasheet
603 In Stock
Need more?
603 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.2,840.060 |
| 5+ | Rs.1,748.250 |
| 10+ | Rs.1,584.970 |
| 20+ | Rs.1,226.220 |
| 50+ | Rs.1,201.780 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,840.06
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerPOWERPAX
Manufacturer Part NoSW3938-D
Order Code2060976
Technical Datasheet
Output Power Max-
Output Voltage - Output 112VDC
Output Voltage - Output 2-
Output Current - Output 2-
Output Voltage - Output 3-
Output Current - Output 3-
Product Overview
SW3938 is a lugged switched mode power supply. This 18Watt AC/DC switch mode power supplies provide 18 Watts of continuous output power in a high quality compact enclosure suitable for many general power applications. Approved by UL & CE.
- Input voltage range from 90 to 264VAC, output voltage rating is 12VDC, efficiency is 85% (minimum)
- Input power is <lt/>0.1W, output current range is 1.5A
- Input frequency range is 47 to 63Hz, C8 input connector
- Efficiency level VI
- Operating temperature range from 0°C to 40°C
- Overvoltage/overload/short circuit protection
- Lugged case for fixing to flat surface
- Input connector IEC-320-C8
- Dimension is 92.2(L) x 49.2(W) x 26(H) mm
- 1 year warranty
Technical Specifications
Output Power Max
-
Output Voltage - Output 2
-
Output Voltage - Output 3
-
Output Voltage - Output 1
12VDC
Output Current - Output 2
-
Output Current - Output 3
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85045090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.137892
