R161322000
RF / Coaxial Connector, N Coaxial, Straight Bulkhead Jack, Solder, 50 ohm

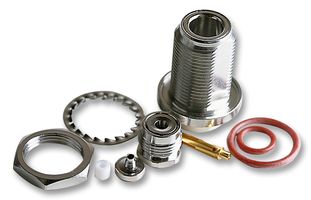

Image is for illustrative purposes only. Please refer to product description.
44 In Stock
Need more?
44 Delivery in 4-6 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | Rs.2,174.020 |
| 10+ | Rs.1,860.100 |
| 25+ | Rs.1,749.000 |
| 50+ | Rs.1,669.610 |
| 100+ | Rs.1,594.040 |
| 250+ | Rs.1,499.700 |
| 500+ | Rs.1,434.820 |
Price for:Each
Minimum: 1
Multiple: 1
Rs.2,174.02
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRADIALL
Manufacturer Part NoR161322000
Order Code4195802
Technical Datasheet
Connector TypeN Coaxial
Connector Body StyleStraight Bulkhead Jack
Coaxial TerminationSolder
Coaxial Cable TypesRG179, RG187, RG188, RG316
Contact MaterialBeryllium Copper
Contact PlatingGold Plated Contacts
Connector MountingPanel Mount
Product Range-
Product Overview
The R161322000 is a bulkhead panel seal clamp N-type Straight Jack for use with RG179, RG187, RG188 and RG316 RF coaxial cables. It has BBR2-plated brass body with gold over nickel plated beryllium copper centre contact and a PTFE insulator.
- 5000MΩ Minimum insulation resistance
- 750Veff Minimum dielectric withstanding voltage
- 250Veff Maximum voltage rating
- 500-cycle Mating life
- -55 to 155°C Operating temperature range
Applications
RF Communications, Industrial
Technical Specifications
Connector Type
N Coaxial
Coaxial Termination
Solder
Contact Material
Beryllium Copper
Connector Mounting
Panel Mount
Connector Body Style
Straight Bulkhead Jack
Coaxial Cable Types
RG179, RG187, RG188, RG316
Contact Plating
Gold Plated Contacts
Product Range
-
Technical Docs (2)
Alternatives for R161322000
6 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85369090
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.044
