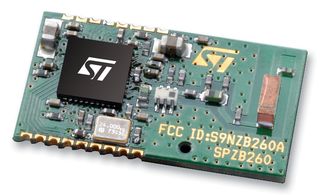

SPZB260

SPZB260 is a low power consumption ZigBee module optimised for embedded applications. It enables OEMs to easily add wireless capability to electronic devices. The module is based on the SN260 ZigBee network processor which integrates a 2.4GHz, IEEE 802.15.4 compliant transceiver, as well as IEEE 802.15.4 PHY and MAC. High stability crystal with 24MHz is integrated in the module to perform the timing requirements as per ZigBee specifications. A single supply voltage is requested to power the module. A 2.5GHz specific antenna is integrated in the module. The voltage supply determines the I/O ports level allowing an easy interface with the host system. The module is controlled by means of a standard serial interface(SPI) allowing the connections to a variety of host microcontrollers.

• On board 24MHz stable crystal
• Watchdog timer and power on reset
• Pins available for non intrusive debug interface
• 1uA power consumption in deep sleep mode
• Integrated RC oscillator for low power operation
• Controlled by a standard serial line for an easy interface of host microcontrollers
• Embedded flash and integrated RAM for program and data storage
• Available link and activity outputs for external indication/monitor
• CE compliant
• FCC compliant

Applications

Wireless, Industrial, Sensing & Instrumentation, Communications & Networking, System Monitoring, Lighting, Security
